Description

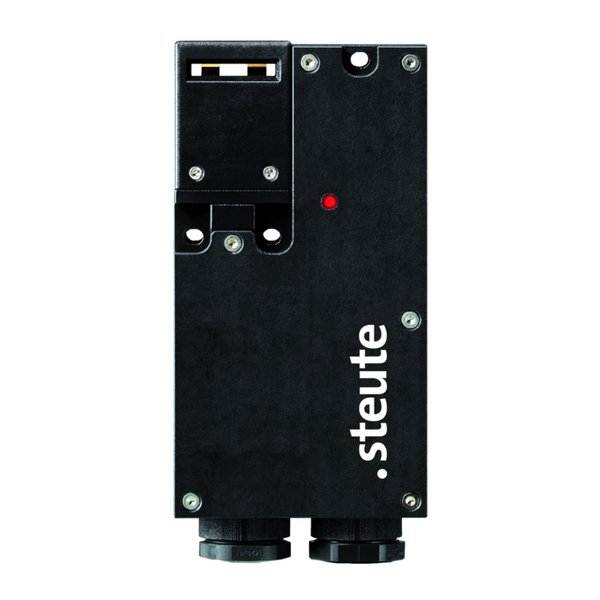

Steute STM 295 1ÖS/1ÖS-A. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | STM 295 1ÖS/1ÖS-A |
| Article No. (MPN) | 1183003 |
| Product Category | Sensors |
| Applied standards | EN ISO 13849-1, EN 60947-5-1, EN ISO 14119 |
| Switch type | type 2 |
| Coding level | low coding |
| Degree of protection | IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 1 million |
| T m | max. 20 years |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact + 1 NC/1 NO contact, type Zb |
| Connection | screw connection terminals |
| Cable cross-section | min. 0.2 mm² (AWG 24), max. 1.5 mm² (AWG 16) |
| Cable entry | 2 x M20 x 1.5 |
| Rated insulation voltage U i | 250 V |
| Rated impulse withstand voltage U imp | 4 kV |
| Conventional thermal current I the | 4 A |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 6 A gG fuse; direct-current solenoid: 2 A (slow blow) |
| Safety class | II |
| Power consumption | <2.5 W (continuous operation), max. 47 W (for 250 ms) |
| Operation cycles | max. 1200/h |
| Mechanical life | > 500 000 operations |
| Condition | New & original |
| Availability | On request |
