Description

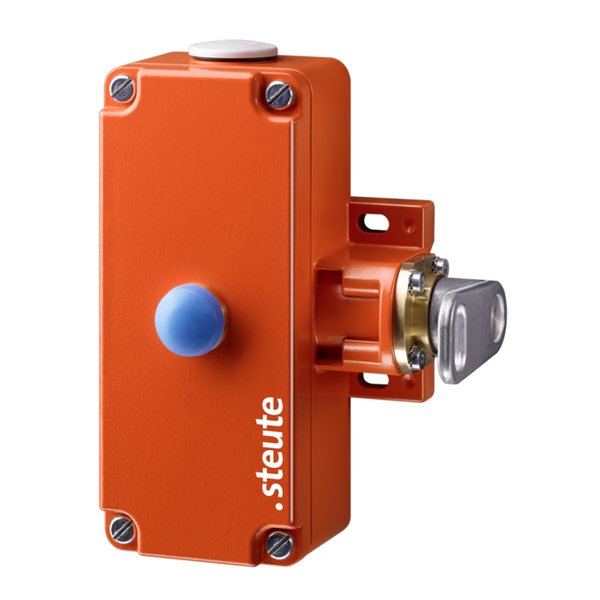

Steute ZS 75 S 2Ö/2S VD IP67 -40°C Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ZS 75 S 2Ö/2S VD IP67 -40°C Extreme |
| Article No. (MPN) | 1183405 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN 60947-5-5, EN ISO 13850, EN ISO 13849-1 |
| Enclosure | aluminium die-cast, powder-coated |
| Cover | aluminium die-cast, powder-coated |
| Degree of protection | IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 100 000 |
| T m | max. 20 years |
| Contact material | silver |
| Switching elements | 2 NC/2 NO contacts, type Zb |
| Switching system | snap action, positive break NC contacts A |
| Connection | screw connection terminals |
| Cable cross-section | min. 0.5 mm², max. 2.5 mm² (incl. conductor ferrules) |
| Stripping length | 6 mm |
| Cable entry | 2 x M25 x 1.5 |
| Rated impulse withstand voltage U imp | 6 kV |
| Rated insulation voltage U i | 400 V |
| Conventional thermal current I the | 6 A |
| Utilisation category | AC-15 |
| Rated operating current/voltage I e /U e | 6 A/400 VAC |
| Short-circuit protection | 6 A gG/gN fuse |
| Ambient temperature | -40 °C … +70 °C |
| Condition | New & original |
| Availability | On request |
