Description

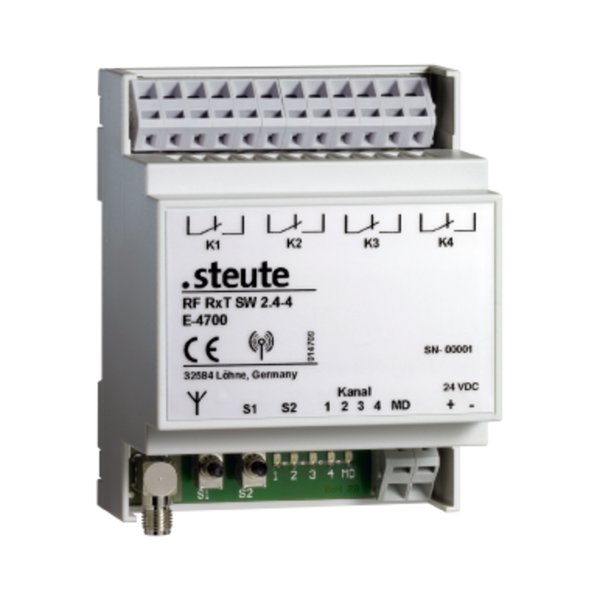

Steute RF RxT SW2.4-IND 4W-VAL 24 VAC/DC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF RxT SW2.4-IND 4W-VAL 24 VAC/DC |
| Article No. (MPN) | 1187208 |
| Product Category | Sensors |
| Applied standards | EN 300 440, EN 301 489-17, EN 60947-5-1 |
| Degree of protection | IP20 (IEC/EN 60529) |
| Mounting | DIN rail mounting |
| Inputs | 2 transmitters per receiver |
| Utilisation category | AC-15; DC-13 |
| EMC rating | according to EMC Directive |
| Ambient temperature | 0 °C … +55 °C |
| Storage and shipping temperature | -25 °C … +85 °C |
| Vibration resistance | NC contact 5 g, NO contact 20 g |
| Shock resistance | max. 100 g |
| Weight | 180 g |
| Frequency | 2.4 – 2.4835 GHz |
| Output power | – 6 dBm e.i.r.p (0 dBm at 50 Ohm) |
| Input sensitivity | up to -98 dBm (-102 dBm at 50 Ohm) |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
