Description

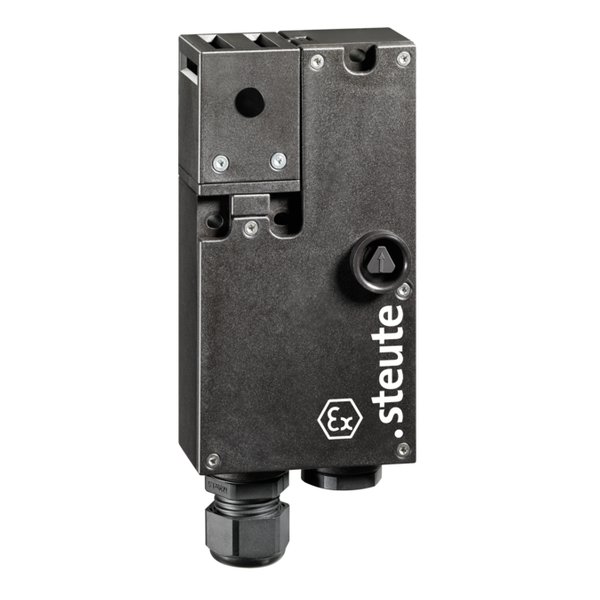

Steute Ex STM 295 2Ö/1Ö1S-R/90°-FE. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex STM 295 2Ö/1Ö1S-R/90°-FE |
| Article No. (MPN) | 1188546 |
| Product Category | Sensors |
| Switch type | type 2 |
| Coding level | low coding |
| Degree of protection | IP64 (IEC/EN 60529) |
| B 10d (10 % load) | 1 million |
| T m | max. 20 years |
| Contact material | silver |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 2 NC + 1 NC/1 NO contact, type Zb |
| Connection | screw connection terminals |
| Clamping range | 7 … 12 mm |
| Rated insulation voltage U i | 250 V |
| Rated impulse withstand voltage U imp | 4 kV |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 3 A gG fuse; direct-current solenoid: 2 A (slow blow) |
| Safety class | II |
| Power consumption | <2.5 W (continuous operation), max. 47 W (for 250 ms) |
| Operation cycles | max. 1200/h |
| Mechanical life | > 500 000 operations |
| Locking force F max | 1000 N |
| Impact energy | max. 7 J |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
