Description

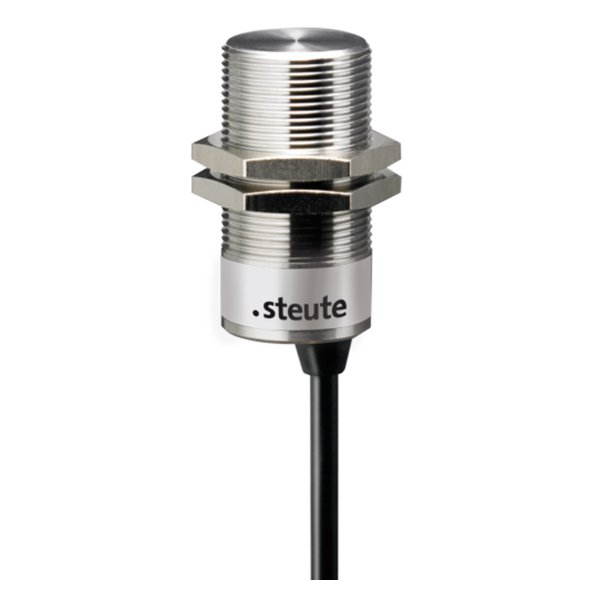

Steute RC Si M30 1Ö/1S – 2m – Niro – IP69 -40°C Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RC Si M30 1Ö/1S – 2m – Niro – IP69 -40°C Extreme |
| Article No. (MPN) | 1188973 |
| Product Category | Sensors |
| Applied standards | EN ISO 13849-1, EN ISO 14119, EN 60947-5-2, EN 60947-5-3* |
| Enclosure | stainless steel 1.4539 |
| Sensor type | type 4 interlocking device |
| Coding level | low coding |
| Tightening torque | mounting nut: max. 75 Nm |
| Degree of protection | IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653) |
| Switching system | reed contacts |
| Switching elements | 1 NC/1 NO contact |
| Connection | cable 4 x AWG 20 |
| Cable cross-section | 4 x 0.56 mm² |
| Cable length | 2 m |
| Switching voltage | max. 30 VDC |
| Rated operating current/voltage I e /U e | max. 157 mA / 24 VDC |
| Utilisation category | DC-12 |
| Voltage drop at I e | max. 3.15 V |
| Short-circuit current I k | max. 750 mA for 50 ms |
| Safety class | II |
| Rated switching distance s n | 10 mm |
| Assured switching distance »ON« s ao | 8 mm |
| Assured switching distance »OFF« s ar | 30 mm |
| Condition | New & original |
| Availability | On request |
