Description

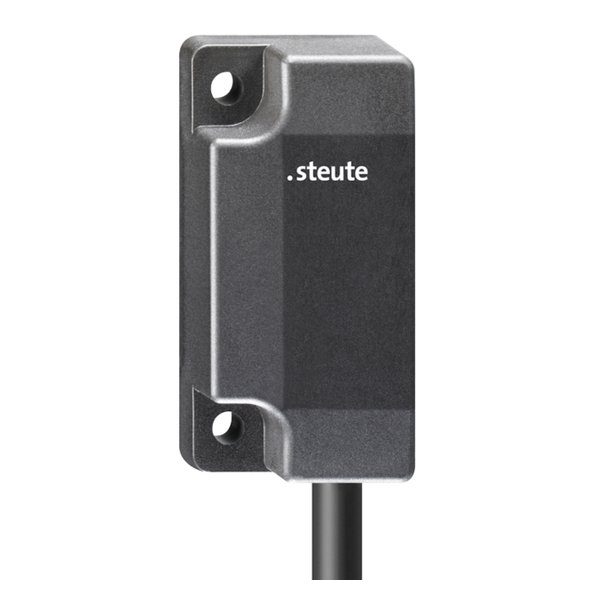

Steute HS Si 4 1Ö/1S – 2m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | HS Si 4 1Ö/1S – 2m |
| Article No. (MPN) | 1188994 |
| Product Category | Sensors |
| Sensor type | type 4 interlocking device |
| Coding level | low coding |
| Degree of protection | IP67 (IEC/EN 60529) |
| Switching elements | 1 NC/1 NO contact |
| Connection | cable 6 x AWG 26 |
| Cable length | 2 m |
| Rated operating voltage U e | 24 VDC |
| Rated operating voltage range U B | 10 … 30 VDC |
| Rated operating current I e | max. 40 mA per channel |
| Utilisation category | DC-12 |
| No-load supply current I 0 | max. 6 mA per channel |
| Voltage drop at I e | max. 2.5 V |
| Switch-on/switch-off time | < 1 ms |
| Attendance delay t v | < 100 ms |
| Short-circuit protection | < 50 mA internal reversible fuse |
| Switching frequency | max. 100 Hz |
| Safety class | II |
| Ambient temperature | -20 °C … +70 °C |
| Storage and shipping temperature | -40 °C … +70 °C |
| Rated switching distance s n | 7 mm |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
