Description

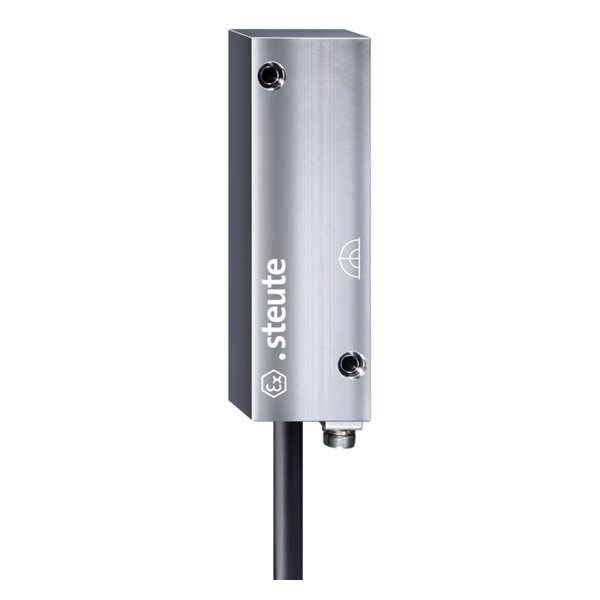

Steute Ex RC 2580 1W-Niro-5m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex RC 2580 1W-Niro-5m |
| Article No. (MPN) | 1190126 |
| Product Category | Sensors |
| Applied standards | EN IEC 60947-5-2, EN IEC 60079-0, EN 60079-18 |
| Enclosure | stainless steel 1.4571 |
| Switching system | reed contacts |
| Switching elements | 1 change-over contact |
| Connection | cable H05VV-F |
| Cable cross-section | 3 x 0.75 mm² |
| Cable length | 5 m |
| Switching voltage | max. 250 VAC |
| Switching current | max. 0.5 A |
| Short-circuit current I k | max. 2 A |
| Switching capacity | max. 30 W/VA |
| Ambient temperature | -20 °C … +70 °C |
| Mechanical life | > 1 million operations |
| Vibration resistance | 35 g (10-1000 Hz) |
| Shock resistance | 50 g (11 ms, ½ sin) |
| Impact energy | max. 7 J |
| Approvals | DMT 01 ATEX E 058 X IECEx BVS 07.0007 X f a |
| Weight | 594 g |
| Condition | New & original |
| Availability | On request |
