Description

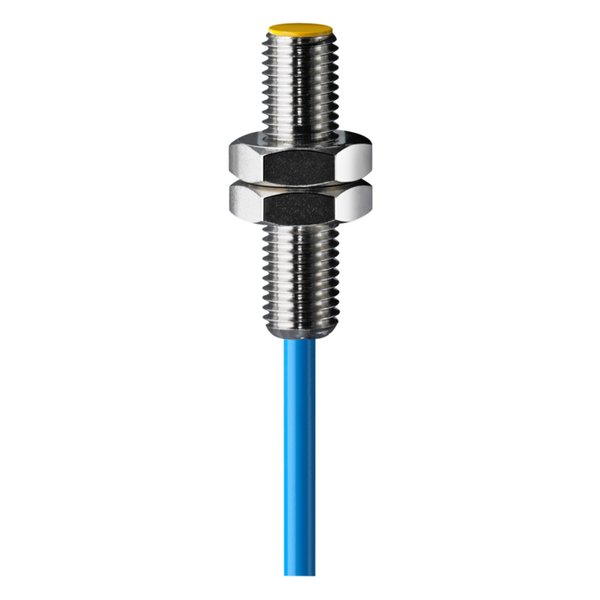

Steute Ex IS M8b 1ABBAB N 1GD 2m. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex IS M8b 1ABBAB N 1GD 2m |
| Article No. (MPN) | 1202202 |
| Product Category | Sensors |
| Applied standards | EN IEC 60079-0, EN 60079-11, EN 60079-26 |
| Enclosure | stainless steel 1.4305 |
| Front cap | POM |
| Degree of protection | IP66, IP67, IP68 (EN IEC 60079-0 + IEC/EN 60529) |
| Connection | cable PUR blue |
| Cable diameter | 4.1 mm |
| Cable cross-section | 2 x 0.25 mm² |
| Cable length | 2 m |
| Switching system | Namur to EN 60947-5-6 |
| Rated switching distance s n | 1 mm |
| Rated operating voltage range U B | 8.2 VDC |
| Switching frequency | 2000 Hz |
| Repeatability | ≤ 3 % |
| Ambient temperature | -25 °C … +60 °C |
| Ex marking | L II 1G Ex ia IIC T6 Ga, L II 1D Ex ia IIIC T85°C Da |
| Approvals | IMQ 14 ATEX 001 IECEx IMQ 14.0001 f |
| Weight | 50 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
