Description

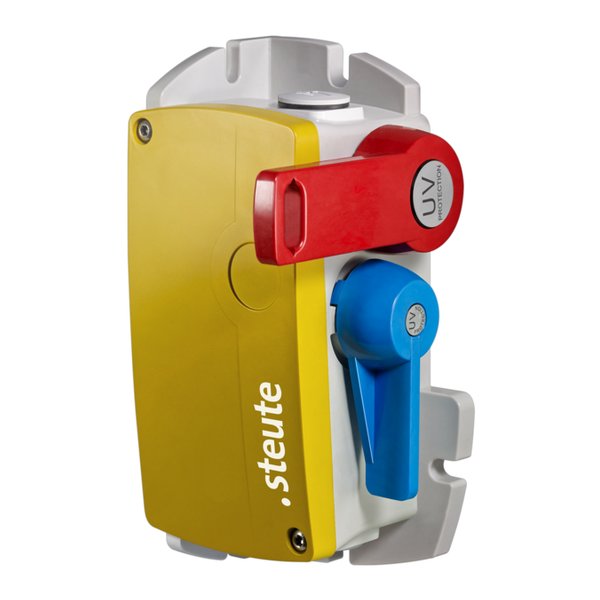

Steute ZS 92 S 13 VD F1 KST -40°C … +70°C IP66/67 Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ZS 92 S 13 VD F1 KST -40°C … +70°C IP66/67 Extreme |
| Article No. (MPN) | 1216814 |
| Product Category | Sensors |
| Enclosure | thermoset, grey, similar to RAL 7035 |
| Cover | thermoset, enamel finish, yellow, similar to RAL 1012 |
| Actuating lever | thermoset, signal red, similar to RAL 3001 |
| Reset lever | thermoset, sky blue, similar to RAL 5015 |
| Screws | stainless steel |
| Tightening torque | cover screws: max. 2.5 Nm |
| Degree of protection | IP66/IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 100 000 |
| T m | max. 20 years |
| Switching elements | 3 NC/1 NO contacts, type Zb |
| Switching system | snap action, positive break NC contacts A |
| Connection | screw connection terminals |
| Cable cross-section | 0.34 … 2.5 mm² (incl. conductor ferrules) |
| Cable entry | 2 x M25 x 1.5 |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 500 V |
| Conventional thermal current I the | 10 A |
| Utilisation category | AC-15; DC-13 |
| Conditional short-circuit current | 1000 A |
| Short-circuit protection | 10 A gG/gL fuse |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
