Description

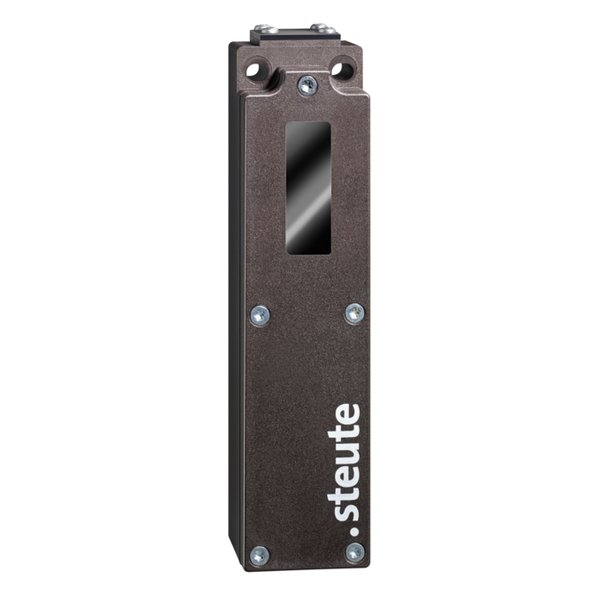

Steute RF 96 SDS SW868 LBT. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF 96 SDS SW868 LBT |
| Article No. (MPN) | 1229449 |
| Product Category | Sensors |
| Battery adapter | POM C, natural |
| Window plate | acrylic, red |
| Degree of protection | IP54 (IEC/EN 60529) |
| Sensor | logging with IR laser |
| Laser class | Class 1 to EN 60825-1; 950 nm |
| Flush-mounted | yes |
| Safety class | III |
| Ambient temperature | 0 °C … +65 °C |
| Type of installation | screw connection |
| Mounting position | any |
| Switching system | activated if switching distance is not reached |
| Switching frequency | max. 10 / minute |
| Switching distances | 25 cm fixed |
| Opening angle of the IR receiver | 27° |
| Hysteresis | one side, 4 cm fixed |
| Repeatability | ± 2.5 cm |
| Switch-on delay t on | max. 3 s |
| Switch-off delay t off | max. 3 s |
| Recovery time | 6 s |
| Actuating time | min. 20 ms |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
