Description

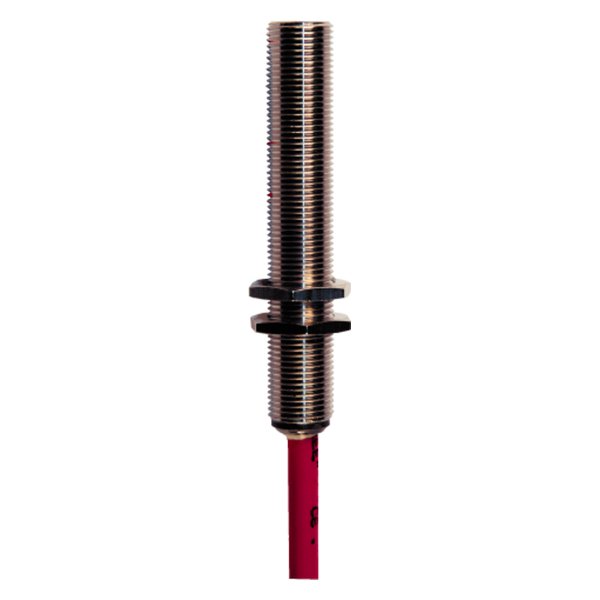

Steute RC 23 1W – 2m -60°C … +100°C IP69 Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RC 23 1W – 2m -60°C … +100°C IP69 Extreme |
| Article No. (MPN) | 1253800 |
| Product Category | Sensors |
| Applied standards | EN IEC 60947-5-2 |
| Enclosure | brass, nickeled |
| Degree of protection | IP66, IP67, IP69 (IEC/EN 60529) / IP69K (ISO 20653) |
| Switching system | reed contacts |
| Switching elements | 1 change-over contact |
| Connection | cable silicone SIHF |
| Cable cross-section | 3 x 0.75 mm² |
| Cable length | 2 m |
| Switching voltage | max. 90 VAC / 125 VDC |
| Switching current | max. 1 A |
| Switching capacity | max. 30 W/VA |
| Ambient temperature | -60 °C … +100 °C |
| Mechanical life | 10 9 operations |
| Repeatability | ± 0.02 mm |
| Vibration resistance | 10 g (10-500 Hz) |
| Shock resistance | 100 g (1 ms, ½ sin) |
| Bounce duration | max. 2 ms |
| Weight | 180 g |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
