Description

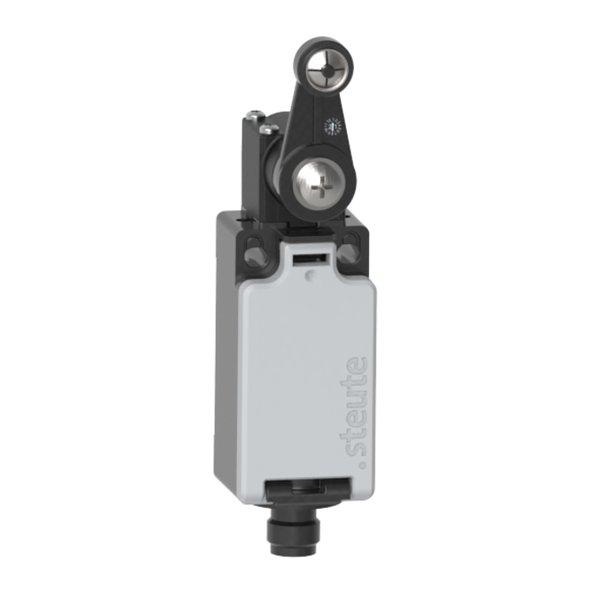

Steute EM 97 D 11 M12x1. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | EM 97 D 11 M12x1 |
| Article No. (MPN) | 1255757 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN ISO 13849-1, EN ISO 14119 |
| Switch type | type 1 |
| Coding level | no coding |
| Degree of protection | IP66/IP67 (IEC/EN 60529), only with plugged cable |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Switching system | snap action, positive break NC contacts A |
| Switching elements | 1 NC/1 NO contact, type Zb |
| Connection | plug-in connector M12 x 1, 4-pole, A-coded |
| Rated impulse withstand voltage U imp | 0.8 kV |
| Rated insulation voltage U i | 50 V |
| Conventional thermal current I the | 4 A |
| Utilisation category | AC-15; DC-13 |
| Rated operating current/voltage I e /U e | 4 A/50 VAC |
| Short-circuit protection | 4 A gG/gL fuse |
| Safety class | II |
| Operation cycles | max. 1800/h |
| Mechanical life | > 1 million operations |
| Ambient temperature | -30 °C … +70 °C |
| Approvals | d a |
| Condition | New & original |
| Availability | On request |
