Description

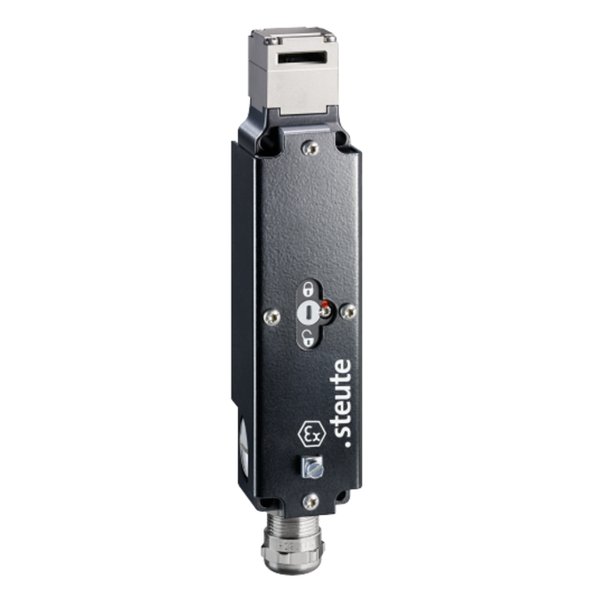

Steute Ex STM 298 01/12 R-3G/D. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | Ex STM 298 01/12 R-3G/D |
| Article No. (MPN) | 1273831 |
| Product Category | Sensors |
| Enclosure | aluminium die-cast |
| Actuator head | aluminium die-cast |
| Switch type | type 2 |
| Coding level | low coding |
| Degree of protection | IP67 (IEC/EN 60529) |
| B 10d | 11.5 million (at DC-13 100 mA/24 V) |
| T m | max. 20 years |
| Mechanical life | 1 million operations |
| Ambient temperature | -20 °C … +75 °C |
| Mounting position | any |
| Actuating speed | max. 20 m/min |
| Extraction force (not locked) | 30 N |
| Retention force | 20 N |
| Actuating force | max. 35 N |
| Operation cycles | max. 1200/h |
| Switching system | slow action |
| Switching elements | 1 NC + 2 NC/1 NO contact |
| Contact material | Silver, gold flashed |
| Cable entry | 3 x M20 x 1.5 |
| Clamping range | 6,5 … 12 mm |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
