Description

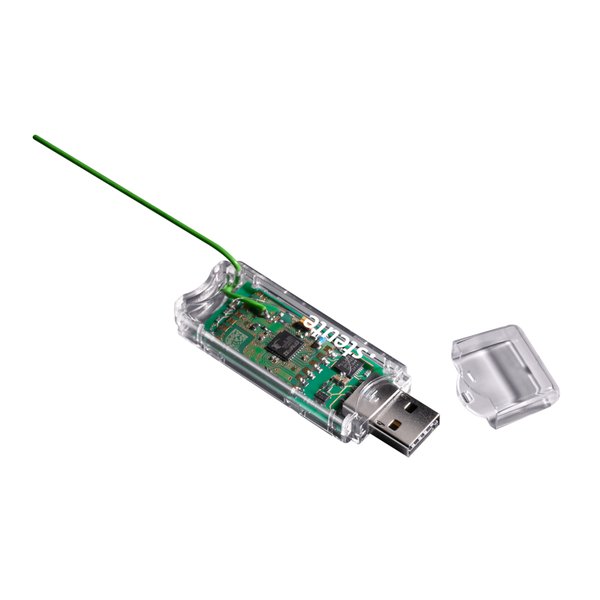

Steute RF RxT SW868-USB. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF RxT SW868-USB |
| Article No. (MPN) | 1278188 |
| Product Category | Sensors |
| Enclosure | polycarbonate, self-extinguishing UL 94 V-0, transparent |
| Degree of protection | IP30 (IEC/EN 60529) |
| Voltage source | via USB interface |
| Connection | USB 2.0 |
| Receiver mode | 40 sWave transmitters |
| Gateway mode | indefinite number of transmitters |
| Rated operating current/voltage I e /U e | < 60 mA / 5 VDC ±5% (USB interface) |
| Ambient temperature | 0 °C … +65 °C |
| Storage and shipping temperature | -25 °C … +80 °C |
| Note | no external antenna required |
| Weight | 15 g |
| Frequency | 868.3 MHz (Europe) |
| Data rate | 66 kbps |
| Channel bandwidth | 350 kHz |
| Modulation type | 2-FSK |
| Protocol | sWave® |
| Transmission power | < 25 mW |
| Wireless approvals | Europe: RED 2014/53/EU |
| Wireless range | max. 450 m outdoors, max. 40 m indoors |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
