Description

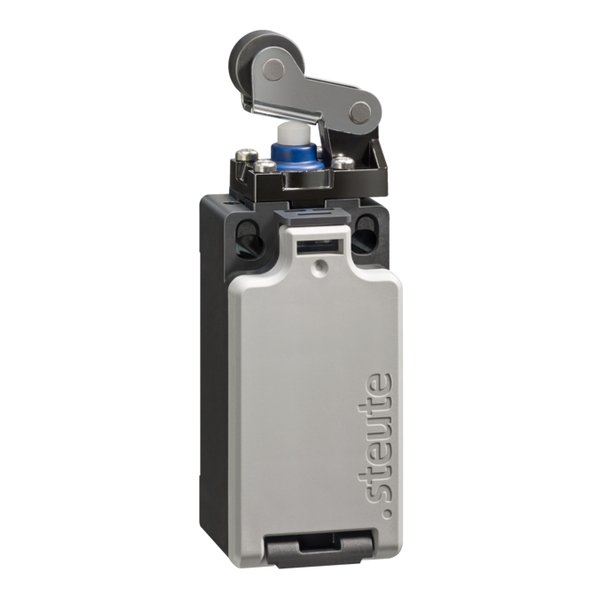

Steute ES 97 WHM 02. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ES 97 WHM 02 |
| Article No. (MPN) | 1314298 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1, EN ISO 13849-1, EN ISO 14119 |
| Switch type | type 1 |
| Coding level | no coding |
| Degree of protection | IP66/IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 20 million |
| T m | max. 20 years |
| Switching system | slow action, positive break NC contacts A |
| Switching elements | 2 NC contacts, type Zb |
| Connection | screw connection terminals |
| Cable cross-section | 0.34 … 2.5 mm² (incl. conductor ferrules) |
| Cable entry | 1 x M20 x 1.5 (for cable glands only) |
| Rated impulse withstand voltage U imp | 6 kV |
| Rated insulation voltage U i | 500 V |
| Conventional thermal current I the | 10 A |
| Utilisation category | AC-15; DC-13 |
| Short-circuit protection | 10 A gG/gL fuse |
| Safety class | II |
| Conditional short-circuit current | 1000 A |
| Operation cycles | max. 1800/h |
| Mechanical life | 10 million operations |
| Condition | New & original |
| Availability | On request |
