Description

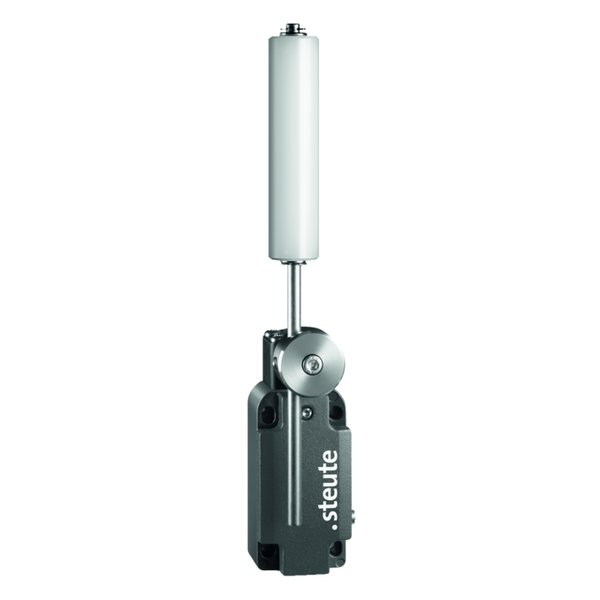

Steute HS 98 SR 0-10 VDC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | HS 98 SR 0-10 VDC |
| Article No. (MPN) | 1336919 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-2, EN 60947-5-7 |
| Enclosure | aluminium die-cast, powder-coated |
| Degree of protection | IP67 (IEC/EN 60529) |
| Switching system | Hall sensor with analogue output |
| Linearity | 2 % |
| Connection | Cage clamps |
| Cable cross-section | max. 0.08 … 2.5 mm², AWG 28 … 12 |
| Cable entry | 1 x M20 x 1.5 |
| Over temperature protection | monitoring via μ controller + NTC |
| Rated operating voltage U e | 24 VDC |
| Rated operating voltage range U B | 18 … 30 VDC |
| Rated operating current I e | ≤ 25 mA |
| Rated output voltage | Q1: 0 … 10 V; max. 10.2 V |
| Rated output current | Q2: ≤ 100 mA short-circuit protected |
| Voltage drop at I e | 2 V |
| Working resistance | ≥ 1 kΩ |
| Attendance delay t v | < 500 ms |
| Short-circuit protection | internal fuse 0.375 A F |
| Ambient temperature | -20 °C … +60 °C |
| Mechanical life | > 1 million operations |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
