Description

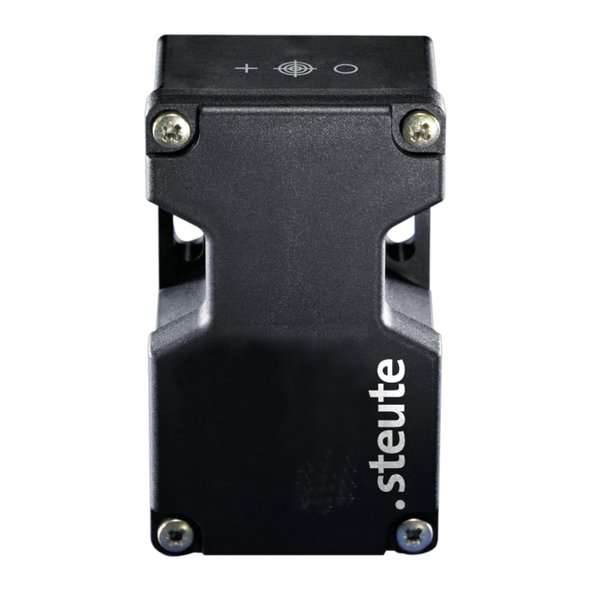

Steute BZ 16-12F IP69 Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | BZ 16-12F IP69 Extreme |
| Article No. (MPN) | 1355627 |
| Product Category | Sensors |
| Sensor type | type 4 interlocking device |
| Coding level | low coding |
| Degree of protection | IP69 (IEC/EN 60529) |
| Rated switching distance s n | 12 mm (10 mm with flush mounting) |
| Assured switching distance »ON« s ao | 10 mm (8 mm with flush mounting) |
| Assured switching distance »OFF« s ar | 25 mm |
| Hysteresis | approx. 6 mm |
| Sideways tolerance | ≤ 3 mm |
| Repeatability | ± 1 mm |
| No-load supply current I 0 | ≤ 70 mA |
| Outputs | 2 enabling paths (1 NO/1 NC) 1 signalling contact (1 NC) |
| Switching voltage | max. 30 VAC/DC |
| Conditional short-circuit current | 100 A |
| Rated insulation voltage U i | 250 VAC |
| Rated impulse withstand voltage U imp | 1.5 kV |
| Voltage drop at I e | max. 0.6 V |
| Overvoltage category | III |
| Switching frequency | max. 1 Hz |
| Attendance delay t v | < 300 ms |
| Risk time | max. 165 ms |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
