Description

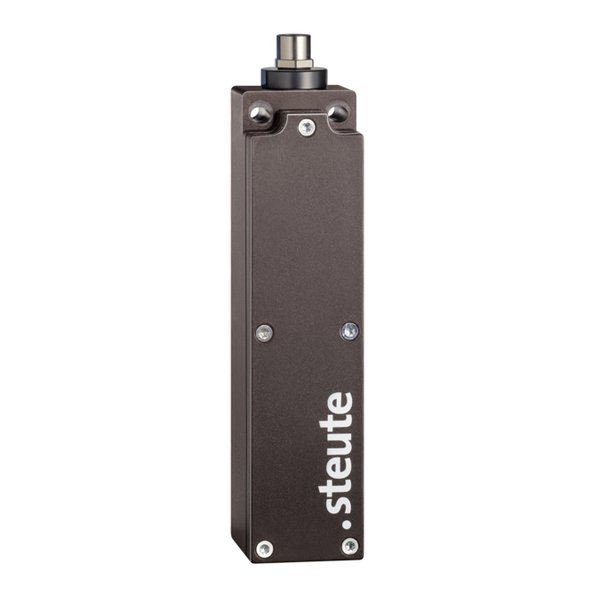

Steute RF 96 BU SW868 LBT. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | RF 96 BU SW868 LBT |
| Article No. (MPN) | 1406109 |
| Product Category | Sensors |
| Battery adapter | POM C, natural |
| Degree of protection | IP67 (IEC/EN 60529), only with plugged cable |
| Safety class | III |
| Connection | socket M8 x 1, 4-pole |
| Connectable devices | RF IS M* FL, RF RC M* |
| Ambient temperature | -20 °C … +65 °C |
| Type of installation | screw connection |
| Mounting position | any |
| Actuating time | min. 80 ms |
| Switching frequency | max. 5 Hz |
| Note | transmission of battery voltage and switching condition |
| Frequency | 868.3 MHz (Europe) |
| Data rate | 66 kbps |
| Channel bandwidth | 350 kHz |
| Modulation type | 2-FSK |
| Protocol | sWave® |
| Transmission power | < 25 mW |
| Wireless approvals | Europe: RED 2014/53/EU |
| Telegram rate | max. 12000 telegrams with repetitions/h |
| Wireless range | max. 450 m outdoors, max. 40 m indoors |
| Condition | New & original |
| Availability | On request |
