Description

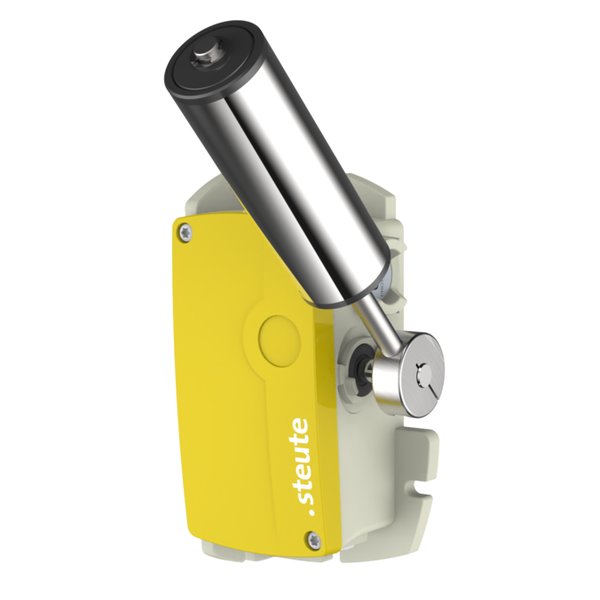

Steute ZS 92 SR 22 KST -40°C … +70°C IP66/67 Extreme. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Steute |
|---|---|
| Model / Type | ZS 92 SR 22 KST -40°C … +70°C IP66/67 Extreme |
| Article No. (MPN) | 1413910 |
| Product Category | Sensors |
| Applied standards | EN 60947-5-1 |
| Enclosure | thermoset, grey, similar to RAL 7035 |
| Cover | thermoset, enamel finish, yellow, similar to RAL 1012 |
| Actuator | stainless steel |
| Screws | stainless steel |
| Tightening torque | cover screws: max. 2.5 Nm actuator screw: max. 15 Nm |
| Degree of protection | IP66/IP67 (IEC/EN 60529) |
| B 10d (10 % load) | 2 million |
| T m | max. 20 years |
| Safety class | II |
| Contact material | silver |
| Switching elements | 2 NC/2 NO contacts, type Zb |
| Switching system | snap action |
| Switching points | adjustable 5° to 35°; pre-adjustment setting 2 x 10° |
| Connection | screw connection terminals |
| Cable cross-section | 0.5 … 2.5 mm² (incl. conductor ferrules) |
| Cable entry | 2 x M25 x 1.5 |
| Rated impulse withstand voltage U imp | 4 kV |
| Rated insulation voltage U i | 400 V |
| Conventional thermal current I the | 4 A |
| Condition | New & original |
| Availability | On request |
Download official Steute datasheet (PDF)
Independent distributor — not an authorised Steute dealer. All parameters are taken from the official manufacturer documentation.
