Description

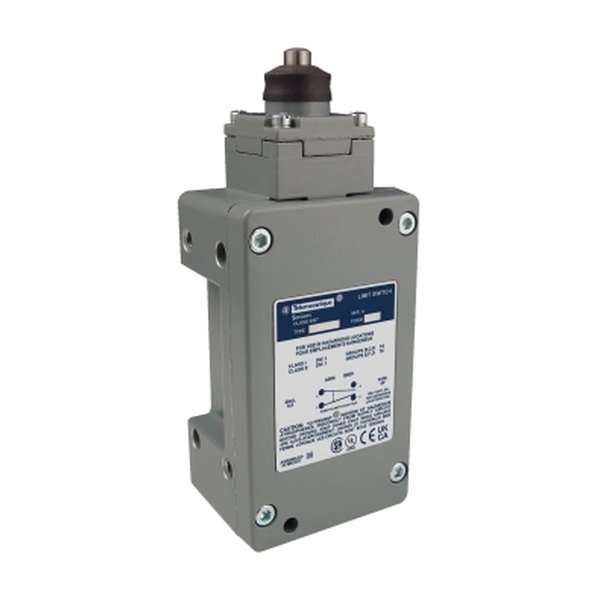

Telemecanique Sensors 9007CR53E — EINDSCHAKELAAR 600V 10AMP. Manufacturer designation: Limit switch, 9007, 600 V 10amp c +options. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | 9007CR53E |
| Product Category | Sensors |
| Range of product | 9007 |
| Series name | Heavy duty |
| Product or component | Limit switch |
| Product specific | Hazardous location box |
| Device short name | 9007CR |
| Body type | Fixed |
| Head type | Plunger head |
| Fixing mode | By the body |
| Movement of operating | Linear |
| Type of operator | Stainless steel spring return plunger (-) |
| Switch actuation | On end |
| Type of approach | Vertical approach, 1 direction |
| Electrical connection | Screw-clamp terminals (AWG 22…AWG 12), 1…2 |
| Cable entry | 1 entry for 1/2″ – 14 NPT conforming to ANSI |
| Contacts type and | NC-NO |
| Contact operation | Snap action |
| Positive opening | Without |
| Level or class | Class II Division 1 Groups E/F/G |
| Body material | Aluminium |
| Head material | Zinc |
| Switch function | SPDT-DB |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
