Description

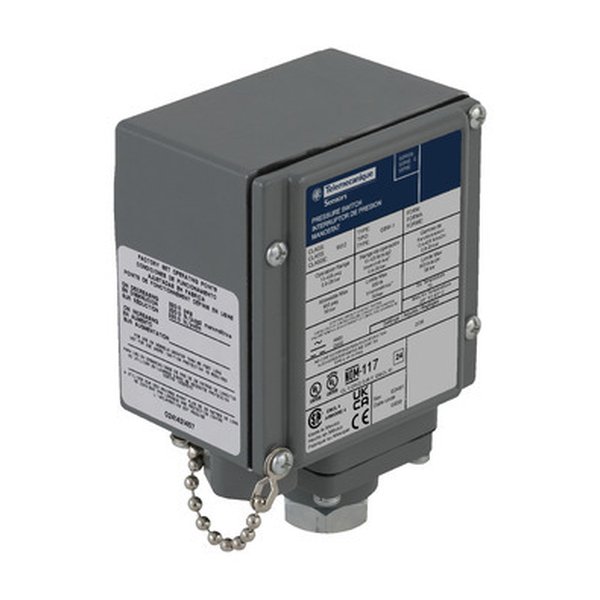

Telemecanique Sensors 9012GBW21 — PRESSURE SWITCH. Manufacturer designation: Pressure switch 9012G, adjustable scale, 2. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | 9012GBW21 |
| Product Category | Sensors |
| Range of product | 9012G |
| Pressure sensor type | Electromechanical pressure switch |
| Pressure sensor name | 9012G |
| Pressure rating | 2930.27 kPa |
| Maximum pressure | 850 psi |
| Contacts type and | 2(NC-NO), DPDT-DB, Form ZZ, snap action, silver |
| Controlled fluid | Hydraulic oil (-40…121 °C) |
| Fluid connection type | 0.25 inch 18 NPTF conforming to UL 508 |
| Pressure switch type of | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Local display | Without |
| Range on decreasing pressure | 89.63…2930.27 kPa |
| Approx adjustable differential at mid range | 110.32…620.53 kPa +/- 2.5 % full scale |
| Cable entry | 0.5 inch NPT conduit entrance |
| Terminal block type | 8 screw terminals |
| Electrical connection | Screw-clamp terminals, AWG 22…AWG 12 |
| Terminal identifier | (2-4)NC |
| Electrical circuit type | Control circuit |
| Local signalling | Without: |
| [In] rated current | 3 A 240 V AC A600 conforming to NEMA rating designation |
| 6 a | 120 V AC A600 conforming to NEMA rating designation |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
