Description

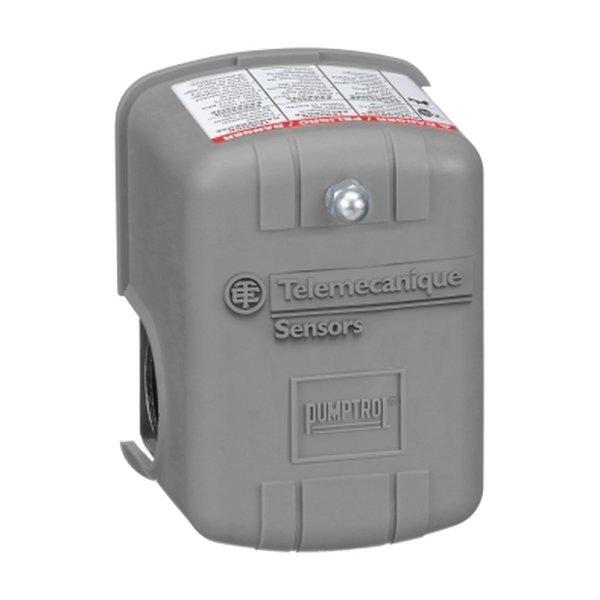

Telemecanique Sensors 9013FHG2J27 — DRUKSCHAKELAAR. Manufacturer designation: Pumptrol, air compressor switch 9013FH, fixed. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | 9013FHG2J27 |
| Product Category | Sensors |
| Range of product | Pumptrol |
| Pressure sensor name | 9013FH |
| Pressure sensor size | 689.48 kPa |
| Value of setting | Off at 100 psi |
| Electrical circuit type | Power circuit |
| Product specific | Control small electrically driven air compressors |
| Type of packing | Individual |
| Pressure sensor type | Electromechanical pressure switch |
| Controlled fluid | Air (-0…70 °C) |
| Adjustable range on rising pressure | 275.79…689.48 kPa |
| Approximate fixed differential | 137.90 kPa |
| Destruction pressure | 1516.8 kPa |
| Pressure actuator | Diaphragm |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Fixed differential |
| Local display | Without |
| Contacts type and composition | 2 NC, snap action, DPST-DB, Form YY |
| Electrical connection | Screw-clamp terminals, clamping capacity: 10 AWG |
| Fluid connection type | 0.25 inch NPSF internal conforming to UL 508 |
| Short-circuit protection | 20 A cartridge fuse, type gG |
| Materials in contact with fluid | Zinc plated steel or equivalent flange |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
