Description

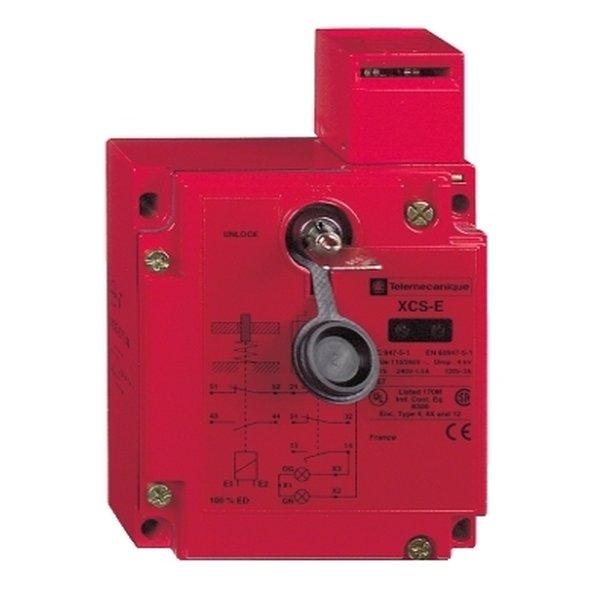

Telemecanique Sensors XCSE7541 — Safety switch. Manufacturer designation: Safety switch, Telemecanique Safety switches. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSE7541 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety switches XCS |
| Product or component | Safety switch |
| Component name | XCSE |
| Head type | Key operated turret head |
| Contacts type and | 2 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Solenoid contacts type | 1 NC + 1 NO (slow-break, simultaneous) |
| Cable entry | 2 entries tapped for Pg 13.5 |
| Cable outer diameter | 9…12 mm |
| Electrical connection | Terminal, clamping capacity: 1 x 0.5…2 x 1.5 mm² |
| Locking options | With interlocking, locking by solenoid |
| Local signalling | 2 LEDs (green or orange) for guard open/guard |
| Signalling circuit voltage | 110/240 V (voltage limits: 95…264 V) |
| Positive opening | With NC contact |
| Supply voltage type | AC/DC |
| Supply frequency | 50/60 Hz |
| Power consumption in VA | 10 VA inrush |
| 10 va | sealed |
| Signalling circuit type | AC |
| Signalling circuit consumption | 7 mA |
| Mechanical durability | 1000000 cycles |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
