Description

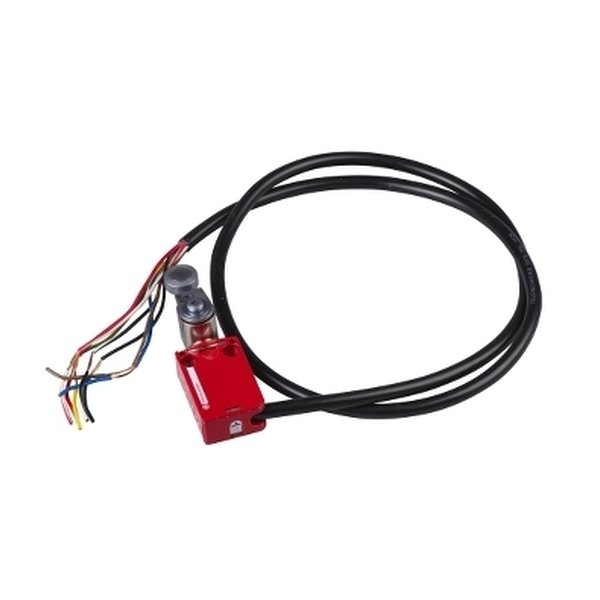

Telemecanique Sensors XCSM3716L5 — Safety limit switch. Manufacturer designation: Safety limit switch, Telemecanique Safety. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSM3716L5 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety switches XCS |
| Product or component | Safety limit switch |
| Component name | XCSM |
| Head type | Rotary head |
| Protection technology | Plastic protective cover, secured by 5-lobe socket |
| Type of approach | Lateral approach |
| Type of operator | Steel roller lever |
| Contacts type and | 1 NC + 1 NC + 1 NO |
| Contact operation | Slow-break, break before make |
| Electrical connection | Pre-cabled |
| Cable length | 5 m |
| Cable composition | 7 x 0.5 mm² |
| Switch actuation | By 30° cam |
| Fixing mode | By the body |
| Positive opening | With NC contact |
| Mechanical durability | 10000000 cycles |
| Minimum torque for tripping | 0.5 N.m |
| Positive opening minimum torque | 0.1 N.m |
| Minimum actuation speed | 6 m/min |
| Maximum actuation speed | 1.5 m/s |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
