Description

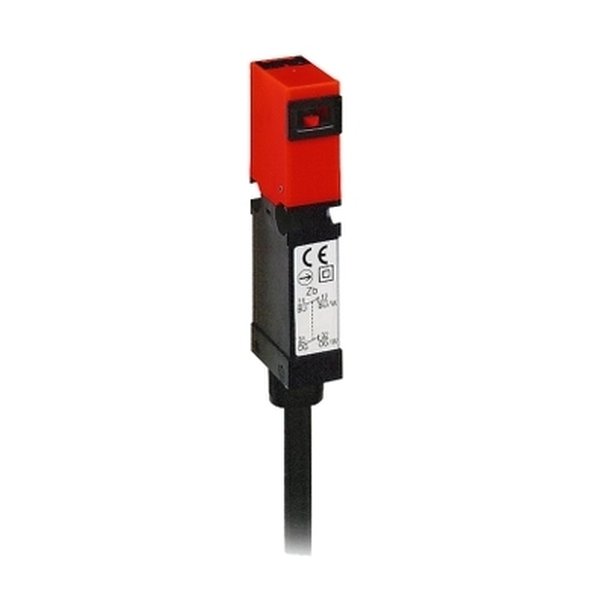

Telemecanique Sensors XCSMP80L10 — Safety switch. Manufacturer designation: Safety switch, Telemecanique Safety switches. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSMP80L10 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety switches XCS |
| Product or component | Safety switch |
| Component name | XCSMP |
| Head type | Key operated fixed head |
| Contacts type and | 3 NC |
| Contact operation | Slow-break, simultaneous |
| Electrical connection | Pre-cabled |
| Locking options | Without locking of actuator |
| Cable length | 10 m |
| Cable composition | 6 x 0.5 mm² |
| Positive opening | With NC contact |
| Mechanical durability | 1000000 cycles |
| Minimum actuation speed | 0.05 m/s |
| Maximum actuation speed | 1.5 m/s |
| [Ie] rated operational current | 0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 |
| 0.27 a | at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 |
| 0.75 a | at 240 V, AC-15, C300 conforming to EN/IEC 60947-5-1 |
| 1.5 a | at 120 V, AC-15, C300 conforming to EN/IEC 60947-5-1 |
| [Ithe] conventional enclosed thermal current | 2.5 A |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| 500 v | conforming to EN/IEC 60947-1 |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
