Description

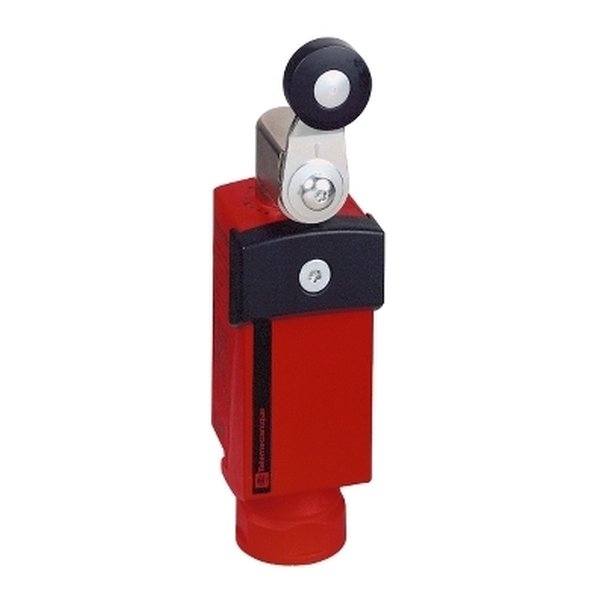

Telemecanique Sensors XCSP3918G13 — Safety limit switch. Manufacturer designation: Safety limit switch, Telemecanique Safety. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSP3918G13 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety switches XCS |
| Product or component | Safety limit switch |
| Component name | XCSP |
| Head type | Rotary head |
| Protection technology | Plastic protective cover, secured by 5-lobe socket |
| Type of operator | Thermoplastic roller lever |
| Contacts type and | 1 NC + 1 NC + 1 NO |
| Contact operation | Snap action |
| Cable entry | 1 entry tapped for Pg 13.5 |
| Electrical connection | Terminal |
| Clamping connection capacity | 1 x 0.34…2 x 0.75 mm² |
| Switch actuation | By 30° cam |
| Positive opening | With NC contact |
| Mechanical durability | 10000000 cycles |
| Minimum torque for tripping | 0.1 N.m |
| Positive opening minimum torque | 0.25 N.m |
| Maximum actuation speed | 1.5 m/s |
| [Ithe] conventional enclosed thermal current | 6 A |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| 400 v | (pollution degree 3) conforming to EN/IEC 60947-1 |
| 300 v | conforming to CSA C22.2 No 14 |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
