Description

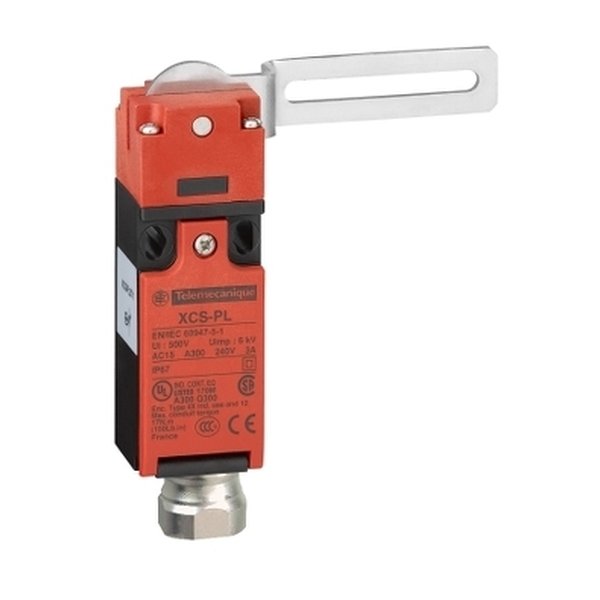

Telemecanique Sensors XCSPL773 — Guard switch. Manufacturer designation: Guard switch, Telemecanique Safety switches. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSPL773 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety switches XCS |
| Product or component | Guard switch |
| Component name | XCSPL |
| Head type | Turret head rotary lever |
| Type of operator | Elbowed flush lever |
| Operator direction | To right |
| Electrical connection | Terminal |
| Contacts type and | 1 NC + 1 NC |
| Contact operation | Slow-break |
| Clamping connection | 1 x 0.5…2 x 1.5 mm² with or without cable end |
| Cable entry | 1 entry tapped for 1/2″ NPT |
| Cable outer diameter | 7…10 mm |
| Positive opening | With NC contact |
| Tripping angle | 5 ° |
| Mechanical durability | 1000000 cycles |
| Minimum torque for tripping | 0.1 N.m |
| Positive opening minimum torque | 0.25 N.m |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| 300 v | conforming to CSA C22.2 No 14 |
| 500 v | (pollution degree 3) conforming to EN/IEC 60947-1 |
| Condition | New & original |
| Availability | On request |
