Description

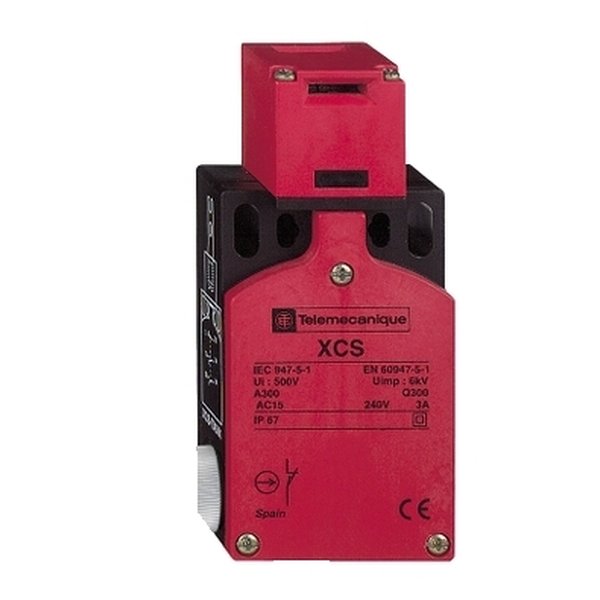

Telemecanique Sensors XCSTA593 — Safety switch. Manufacturer designation: Safety switch, Telemecanique Safety switches. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XCSTA593 |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety switches XCS |
| Product or component | Safety switch |
| Component name | XCSTA |
| Head type | Key operated turret head |
| Contacts type and | 1 NC + 2 NO |
| Contact operation | Slow-break, break before make |
| Cable entry | 2 entries tapped for 1/2″ NPT |
| Electrical connection | Terminal, clamping capacity: 1 x 0.5…2 x 1.5 mm² |
| Locking options | Without locking of actuator |
| Positive opening | With NC contact |
| Mechanical durability | 1000000 cycles |
| Positive opening minimum force | 15 N |
| Minimum actuation speed | 0.01 m/s |
| Maximum actuation speed | 0.5 m/s |
| [Ie] rated operational current | 6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1 |
| 3 a | at 240 V, AC-15, A300 conforming to IEC 60947-5-1 |
| 0.55 a | at 125 V, DC-13, Q300 conforming to IEC 60947-5-1 |
| 0.27 a | at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 |
| 500 v | conforming to IEC 60947-1 |
| 300 v | conforming to CSA C22.2 No 14 |
| Condition | New & original |
| Availability | On request |
