Description

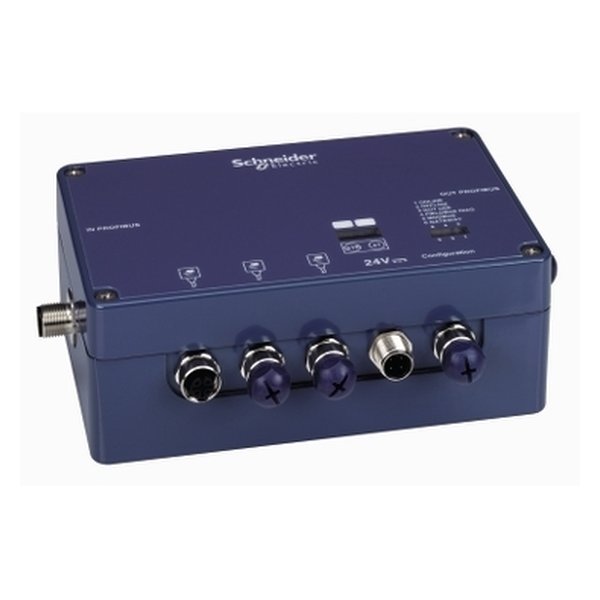

Telemecanique Sensors XGSZ33PDP — Connection Profibus box. Manufacturer designation: Connection Profibus box, Radio frequency. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XGSZ33PDP |
| Product Category | Sensors |
| Range of product | Telemecanique Radio frequency identification XG |
| Product or component | Connection Profibus box |
| Device short name | XGSZ33 |
| Communication port | Profibus DP V1 |
| Associated smart | XGCS49 |
| Electrical connection | 1 female connector M12 4 pins for PC connection (A |
| [Us] rated supply | 24 V DC conforming to Protective Extra Low Voltage |
| Supply voltage limits | 21.6…26.4 V DC |
| Maximum power consumption in W | 2.5 W |
| Status LED | Diagnostics: 1 dual color LED (red/green) |
| Communication service | Cyclical variable exchange |
| Register words | 1…49 words |
| Transmission support medium | 2 twisted shielded pairs cable |
| Transmission rate | 9.6 kbit/s…12000 kbit/s |
| Net weight | 1.06 kg |
| Product certifications | Profibus |
| Ambient air temperature for operation | 0…55 °C |
| Ambient air temperature for storage | -25…85 °C |
| Relative humidity | 30…95 % |
| IP degree of protection | IP65 |
| EMC filter | Class B EMC filter conforming to EN 55022 |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
