Description

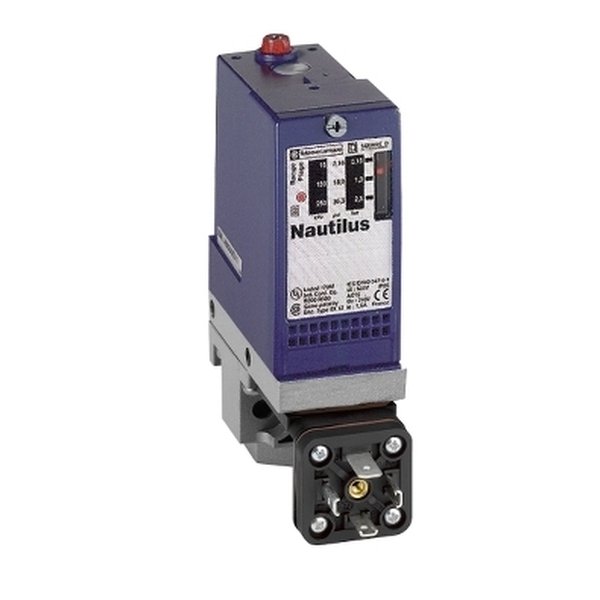

Telemecanique Sensors XMLA300D2C11 — pressure switch XMLA 300 bar – fixed s. Manufacturer designation: Pressure switch XMLA 300 bar – fixed scale 1. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XMLA300D2C11 |
| Product Category | Sensors |
| Range of product | Telemecanique Pressure sensors XM |
| Product or component | Electromechanical pressure sensor |
| Pressure sensor type | Electromechanical pressure sensor |
| Device short name | XMLA |
| Pressure rating | 300 bar |
| Controlled fluid | Hydraulic oil (0…160 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Electrical connection | 1 male connector EN 175301-803-A (ex DIN43650), |
| Contacts type and | 1 C/O |
| Pressure switch type of | Detection of 1 single threshold |
| Electrical circuit type | Control circuit |
| Scale type | Fixed differential |
| Local display | With |
| Adjustable range of | 20…300 bar |
| Maximum permissible | 675 bar |
| Destruction pressure | 1350 bar |
| Pressure actuator | Piston |
| Materials in contact with | Brass |
| Enclosure material | Zinc alloy |
| [In] rated current | 3 A, B300, AC-15 (Ue = 120 V) conforming to IEC |
| 1.5 a, | B300, AC-15 (Ue = 240 V) conforming to IEC |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
