Description

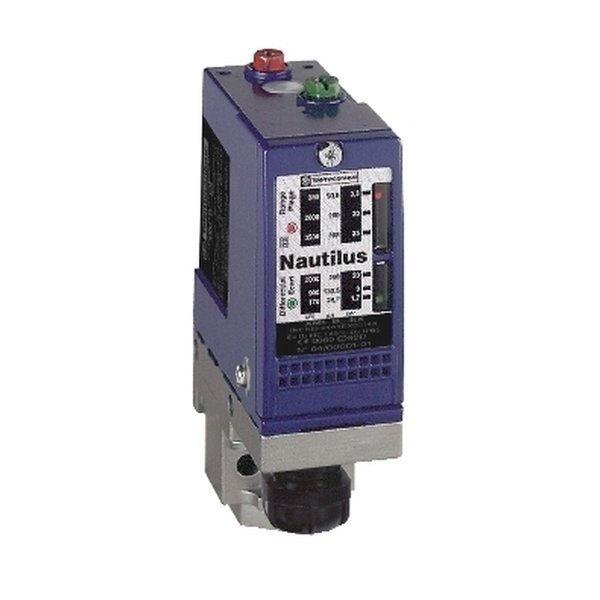

Telemecanique Sensors XMLB020A2S12EX — pressure switch XMLB – 20 bar – adjust. Manufacturer designation: Pressure switch XMLB – 20 bar – adjustable. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XMLB020A2S12EX |
| Product Category | Sensors |
| Range of product | Telemecanique Pressure sensors XM |
| Pressure sensor type | Electromechanical pressure sensor |
| Product specific | ATEX D |
| Pressure sensor name | XMLB |
| Electrical circuit type | Control circuit |
| Pressure switch type of | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Pressure rating | 20 bar |
| Local display | With |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Adjustable range of | 0.3…18.4 bar |
| Possible differential | 11 bar |
| Maximum permissible | 45 bar |
| Destruction pressure | 90 bar |
| Pressure actuator | Diaphragm |
| Controlled fluid | Air (0…70 °C) |
| Materials in contact with | Nitrile |
| Enclosure material | Zinc alloy |
| Maximum permissible pressure – per cycle | 25 bar |
| Cable entry number | 1 tapped entry for M20 x 1.5 cable gland (included) |
| Terminal block type | 4 terminals |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
