Description

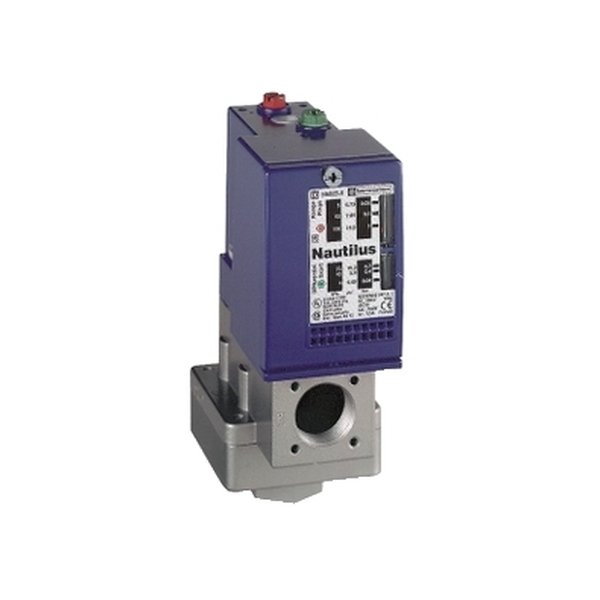

Telemecanique Sensors XMLC002B2S11 — pressure switch XMLC 2.5 bar – adjusta. Manufacturer designation: Pressure switch XMLC 2.5 bar – adjustable. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XMLC002B2S11 |
| Product Category | Sensors |
| Range of product | Telemecanique Pressure sensors XM |
| Product or component | Electromechanical pressure sensor |
| Pressure sensor type | Electromechanical pressure sensor |
| Device short name | XMLC |
| Pressure rating | 2.5 bar |
| Controlled fluid | Air (0…160 °C) |
| Fluid connection type | G 1/4 (female) conforming to ISO 228 |
| Electrical connection | Screw-clamps terminals, 1 x 0.5…2 x 2.5 mm² |
| AWG gauge | AWG 20…AWG 14 |
| Cable entry | Cable gland 9…13 mm |
| Contacts type and | 2 C/O |
| Pressure switch type of | Regulation between 2 thresholds |
| Electrical circuit type | Control circuit |
| Scale type | Adjustable differential |
| Local display | With |
| Adjustable range of | 0.3…2.5 bar |
| Possible differential | 2 bar |
| Maximum permissible | 9 bar |
| Destruction pressure | 18 bar |
| Pressure actuator | Diaphragm |
| Materials in contact with | Steel |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
