Description
Telemecanique Sensors XS7C2A1PAM12 — Inductive proximity sensors XS. Manufacturer designation: Inductive proximity sensors XS, inductive. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XS7C2A1PAM12 |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Device application | Mobile equipment |
| Sensor name | XS7 |
| Sensor design | Form 40 x 40 x 70 |
| Body type | Fixed |
| Detector flush mounting | Flush mountable |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| [Sn] nominal sensing | 15 mm |
| Discrete output function | 1 NO |
| Output circuit type | DC |
| Discrete output type | PNP |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply | 12…24 V DC with reverse polarity protection |
| Switching capacity in | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |

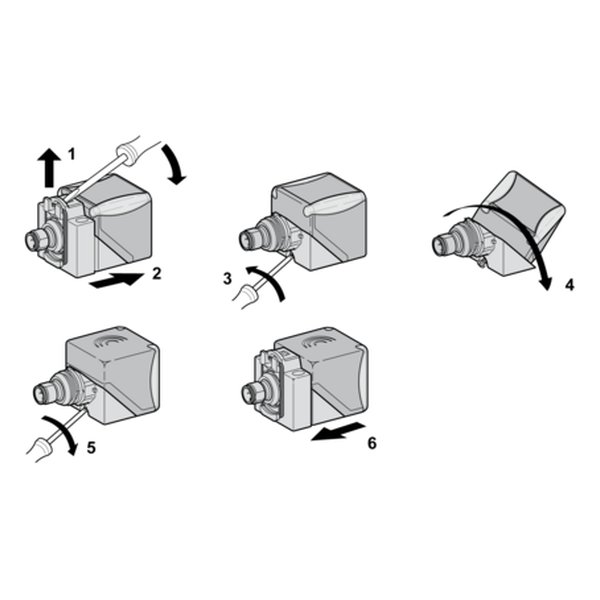

| Detection face | 5 positions turret head |
| Front material | PBT |
| Condition | New & original |
| Availability | On request |
