Description

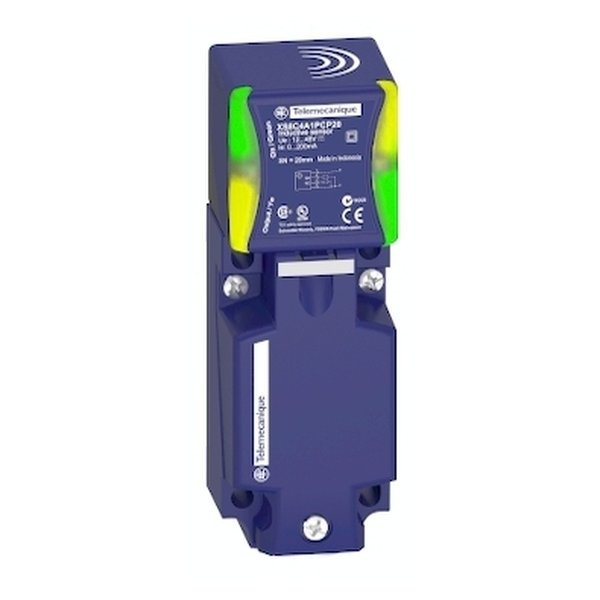

Telemecanique Sensors XS8C4A1PCP20EX — Inductive proximity sensors XS for haz. Manufacturer designation: Inductive proximity sensors XS for hazardous. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XS8C4A1PCP20EX |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Device application | ATEX dust |
| Sensor name | XS8 |
| Sensor design | Form 40 x 40 x 117 |
| Body type | Fixed |
| Detector flush mounting | Flush mountable |
| Enclosure material | PBT |
| [Sn] nominal sensing | 20 mm |
| Type of output signal | Discrete |
| Wiring technique | 4-wire |
| Discrete output function | 1 NO + 1 NC |
| Output circuit type | DC |
| Discrete output type | PNP |
| Electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| [Us] rated supply | 12…48 V DC with reverse polarity protection |
| Switching capacity in | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Safety level | SIL 2 conforming to EN/IEC 61508 |
| Safety reliability data | MTTFd = 1546 years |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
