Description
Telemecanique Sensors XS9C4A2A2P20 — Inductive proximity sensors XS. Manufacturer designation: Inductive proximity sensors XS, inductive. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XS9C4A2A2P20 |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS9 |
| Sensor design | Form 40 x 40 x 117 |
| Body type | Fixed |
| Detector flush mounting | Non flush mountable |
| Enclosure material | PBT |
| Type of output signal | Analogue |
| Wiring technique | 2-wire |
| [Sn] nominal sensing | 25 mm |
| Output circuit type | DC |
| Analogue output range | 4…20 mA |
| Electrical connection | Screw-clamp terminals, 4 x 1.5 mm² |
| [Us] rated supply | 12…24 V DC with reverse polarity protection |
| IP degree of protection | IP67 conforming to IEC 60529 |

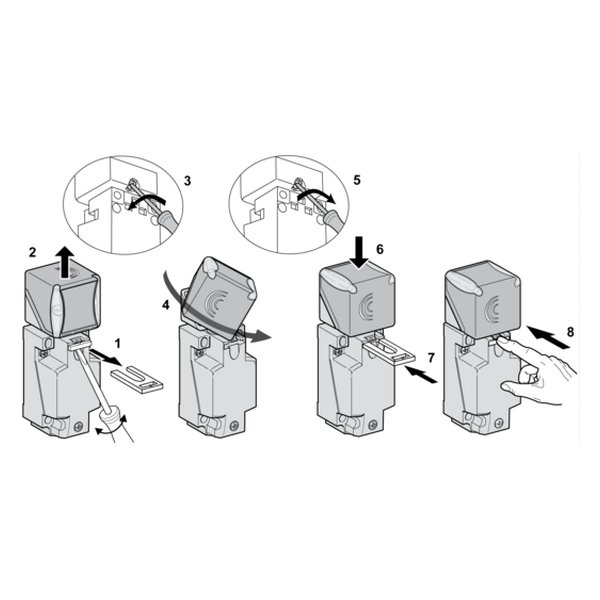

| Detection face | 5 positions turret head |
| Front material | PBT |
| Operating zone | 2…27 mm |
| Linearity error | <= 3% of Sr |
| Maximum output current drift | 5 % |
| Condition | New & original |
| Availability | On request |
