Description
Telemecanique Sensors XS9E11RMBL01U20 — Inductive proximity sensors XS. Manufacturer designation: Inductive proximity sensors XS, Rot.. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XS9E11RMBL01U20 |
| Product Category | Sensors |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | Application |
| Product or component | Sensor |
| Sensor type | Inductive proximity sensor |
| Device application | Rotation monitoring |
| Sensor name | XS9 |

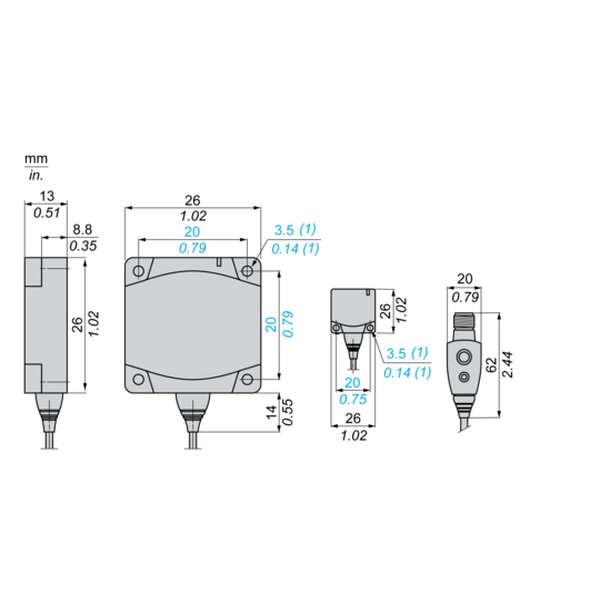

| Sensor design | Flat form 26 x 26 x 13 |
| Body type | Fixed |
| Detector flush mounting | Flush mountable |
| Enclosure material | PBT |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| [Sn] nominal sensing | 10 mm |
| Discrete output function | 1 NC |
| Output circuit type | AC/DC |
| Electrical connection | Remote male connector 1/2″20 UNF, 3 pins |
| Cable length | 0.15 m |
| [Us] rated supply | 24…240 V AC/DC 50/60 Hz |
| Switching capacity in | 5…100 mA AC/DC |
| IP degree of protection | IP67 double insulation conforming to IEC 60529 |
| Detection face | Frontal |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
