Description
Telemecanique Sensors XU2S18PP340D — Safety thru beam pair photo electric s. Manufacturer designation: Safety thru beam pair photo electric sensors,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XU2S18PP340D |
| Product Category | Safety Switching Devices |
| Range of product | Telemecanique Safety light curtains XUSL |
| Product or component | Safety thru-beam pair photo-electric sensors |
| Device short name | XU2S |
| Output type | 1 safety outputs OSSD PNP |
| [Sn] nominal sensing | 8 m |
| Detection system | Transmitter-receiver system |
| [Us] rated supply voltage | 12…24 V DC 10…30 V reverse polarity protection |
| Current consumption | <= 35 mA no-load |
| Maximum voltage drop | <1.5 V (closed) |
| Switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| Switching frequency | 500 Hz maximum |
| Electrical connection | 1 male connector M12 4 pins |
| Line of sight type | Along case axis |
| Maximum delay response | 1 ms |
| Maximum delay recovery | 1 ms |
| Tightening torque | 24 N.M fixing nut |
| 2 N.m | connector |
| Function available | Built-in muting function |
| Net weight | 0.155 kg |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Condition | New & original |
| Availability | On request |

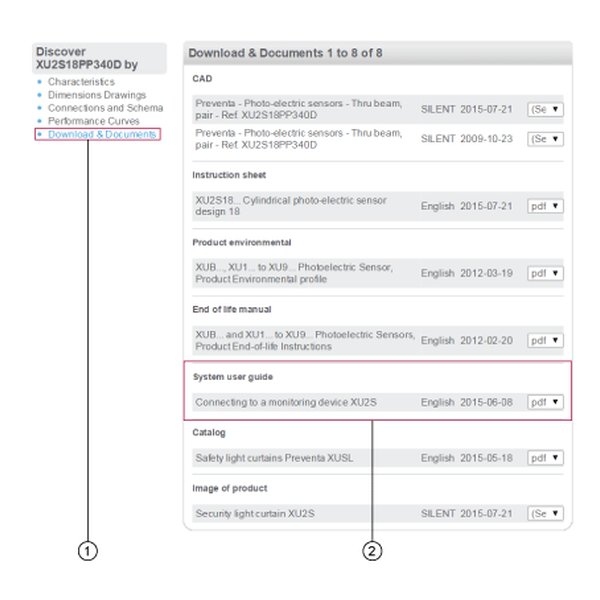

Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
