Description

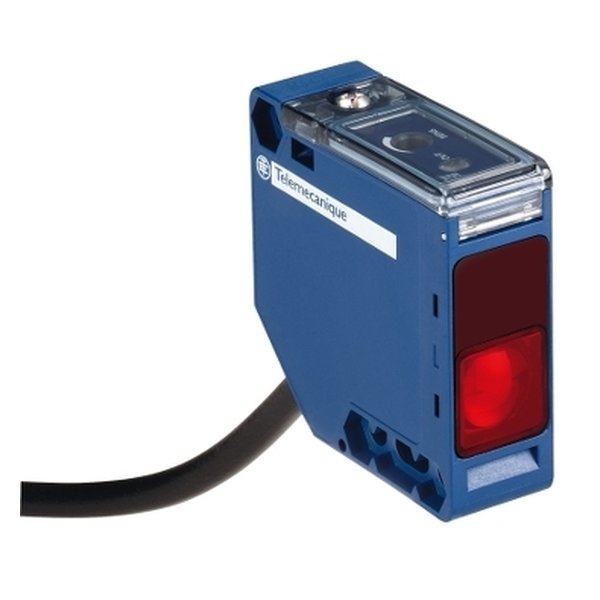

Telemecanique Sensors XUK0AKSAL2T — Photoelectric sensors XU. Manufacturer designation: Photoelectric sensors XU, XUK, emitter, 12…24. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XUK0AKSAL2T |
| Product Category | Sensors |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | General purpose multimode |
| Electronic sensor type | Photo-electric sensor transmitter |
| Sensor name | XUK |
| Sensor design | Compact 50 x 50 |
| Detection system | Thru beam |
| Supply circuit type | DC |
| Wiring technique | 3-wire |
| Electrical connection | Cable |
| Cable length | 2 m |
| [Sn] nominal sensing | 30 m thru beam need a receiver |
| Enclosure material | PBT |
| Lens material | PMMA |
| Maximum sensing distance | 35 m thru beam |
| Add on input | Test by emission breaking |
| Wire insulation material | PvR |
| Status LED | 1 LED (green) for supply on |
| [Us] rated supply voltage | 12…24 V DC with reverse polarity protection |
| Supply voltage limits | 10…36 V DC |
| Switching capacity in mA | <= 100 mA (overload and short-circuit protection) |
| Switching frequency | <= 250 Hz |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
