Description

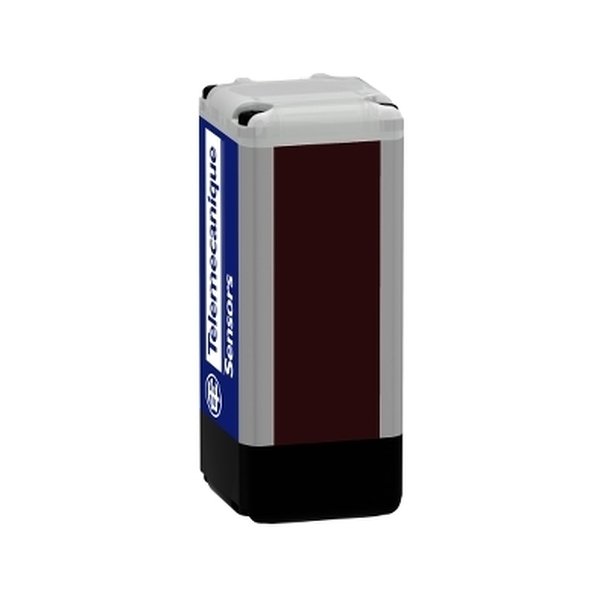

Telemecanique Sensors XUSZPM5AXPL09 — Multi beam muting sensors. Manufacturer designation: Multi beam muting sensors, Telemecanique. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XUSZPM5AXPL09 |
| Product Category | Sensors |
| Range of product | Telemecanique Safety light curtains XUSL |
| Product or component | Multi-beam muting sensors |
| Device short name | XUSZPM5 |
| Output type | 1 discrete solid-state PNP (NO) |
| [Sn] nominal sensing | 0…3.5 m |
| Space between beams | 10 mm |
| Product compatibility | XUSL4M |
| Detection system | Through beam |
| Response time | < 100 ms |
| Kit composition | Transmitter + receiver |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Current consumption | 42 mA no load |
| Output voltage | 24 V |
| Output circuit type | DC |
| Maximum voltage drop | <0.5 V |
| Switching capacity in mA | 100 mA |
| Local signalling | 1 green, orange and red LED receiver |
| Housing colour | Grey |
| Product certifications | CE |
| Safety reliability data | PFHd = 2.73E-7 1/h |
| Ambient air temperature for operation | -30…55 °C |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
