Description

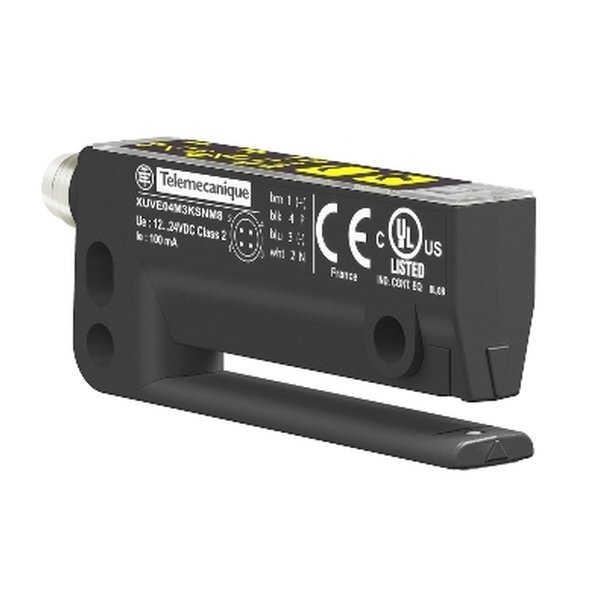

Telemecanique Sensors XUVE04M3NSNM8 — Photoelectric sensors XU. Manufacturer designation: Photoelectric sensors XU, photoelec sensor. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XUVE04M3NSNM8 |
| Product Category | Sensors |
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | Application packaging |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUV |
| Sensor design | Fork |
| Detection system | Thru beam |
| Type of setting | With |
| Passage width | 3 mm |
| Passage depth | 40 mm |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M8, 4 pins |
| Product specific | Detection of labels |
| [Sn] nominal sensing | 3 mm thru beam |
| Enclosure material | Polyamide |
| Lens material | PC |
| Minimum label length | 2 mm |
| Minimum distance between labels | 2 mm |
| Maximum passing speed of object | 200 m/min |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
