Description

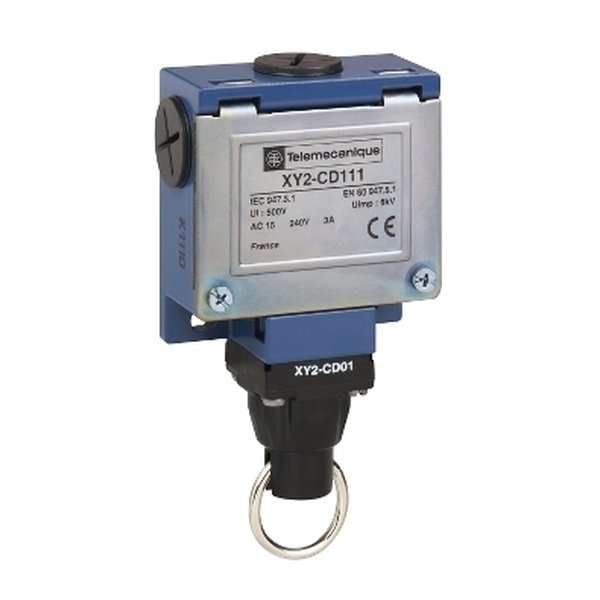

Telemecanique Sensors XY2CD111 — Simple rope pull switch. Manufacturer designation: Simple rope pull switch, Telemecanique. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XY2CD111 |
| Product Category | Sensors |
| Range of product | Telemecanique Emergency stop rope pull switches |
| Product or component | Simple rope pull switch |
| Device short name | XY2CD |
| Housing colour | Blue |
| Overvoltage category | Class I conforming to IEC 61140 |
| Trigger cable maximum length | 6 m |
| Body material | Zamak |
| Head material | Plastic |
| [Us] rated supply voltage | 240 V |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Resistance to wrenching | 237 DaN operating head |
| 36 daN | operating ring |
| Cable entry number | 3 3 entries tapped for Pg 11 cable gland for Pg 11 |
| Mechanical durability | 1500000 cycles |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| 300 v | conforming to UL 508 |
| Compatibility code | XY2CD |
| Product certifications | CCC[RETURN]CE |
| Ambient air temperature for operation | -20…70 °C |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
