Description

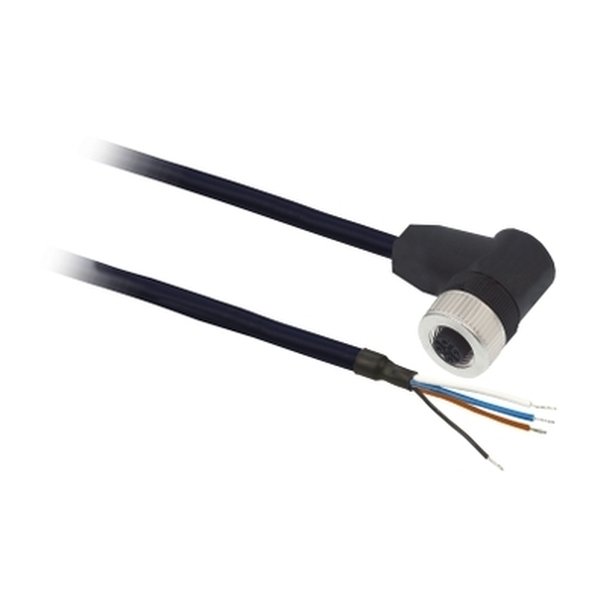

Telemecanique Sensors XZCPB1241L10 — Pre wired connectors XZ. Manufacturer designation: Pre wired connectors XZ, elbowed female, M12. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XZCPB1241L10 |
| Product Category | Sensors |
| Range of product | Telemecanique Cabling components |
| Accessory / separate | Cabling accessory |
| Series name | Application |
| Electrical connection | Elbowed female connector M12, 4 pins |
| Cable connector fixing | Screw-on |
| Collar material | Metal |
| Status LED | Without |
| Cable length | 10 m |
| Cable outer diameter | 5.9 mm |
| Cable composition | 4 x 0.34 mm² |
| Wire insulation material | PUR (shielded cable) |
| [Ue] rated operational voltage | 250 V AC |
| [In] rated current | 4 A |
| Contact resistance | 5000 µOhm |
| Minimum insulating resistance | 1 GΩ |
| Net weight | 0.8 kg |
| IP degree of protection | IP65 |
| Ambient air temperature for operation | -25…80 °C static |
| Ambient air temperature for storage | -25…80 °C |
| Unit Type of Package 1 | PCE |
| Package 1 Height | 2.5 cm |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
