Description

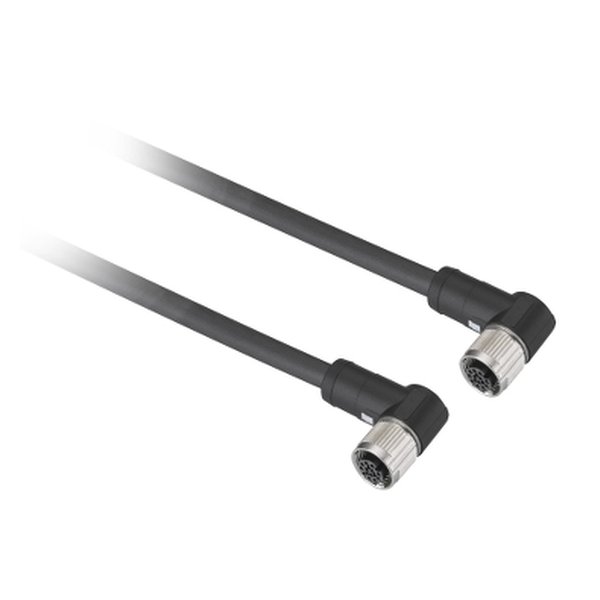

Telemecanique Sensors XZCRB4545P14L2 — Jumper cable XZ. Manufacturer designation: Jumper cable XZ, elbowed female M12 12 pin,. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | XZCRB4545P14L2 |
| Product Category | Sensors |
| Accessory / separate | Cabling accessories |
| Female jumper cable | M12 female 12 pins elbowed connector with screw- |
| End 1 | on |
| End 2 | on |
| Collar material | Metal |
| Cable composition | 12 x 0.14 mm² |
| Cable length | 2 m |
| Wire insulation material | PUR |
| Cable outer diameter | 8.5 mm |
| [Ue] rated operational voltage | 30 V DC |
| [In] rated current | 1.5 A |
| Insulation resistance | >= 100 MOhm |
| Maximum resistance across terminals | 5 mOhm |
| Net weight | 0.12 kg |
| IP degree of protection | IP65 |
| Ambient air temperature for operation | -40…80 °C static |
| Ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Package 1 Height | 2.000 cm |
| Package 1 Width | 20.000 cm |
| Package 1 Length | 20.000 cm |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
