Description

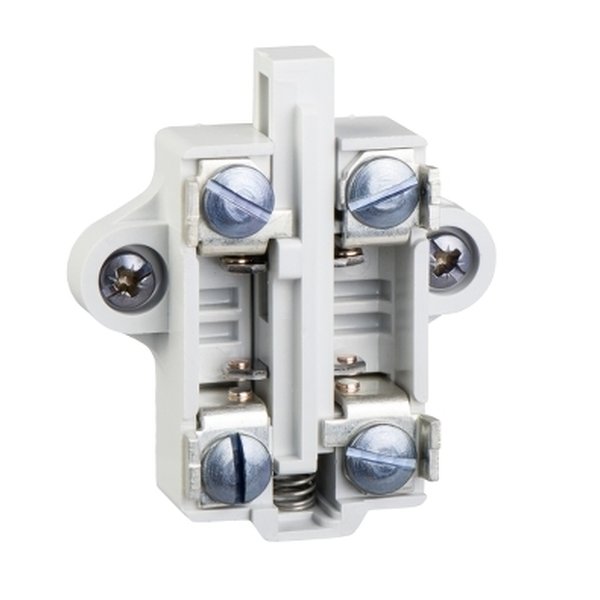

Telemecanique Sensors ZC1AZ13 — Limit switch contact block. Manufacturer designation: Limit switch contact block, Limit switches XC. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Telemecanique Sensors |
|---|---|
| Article No. (MPN) | ZC1AZ13 |
| Product Category | Sensors |
| Range of product | OsiSense XC |
| Series name | Special format |
| Product or component | Limit switch contact block |
| Device short name | ZC1A |
| Product compatibility | XC1AC13. |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x |
| Contacts type and | 1 NO + 1 NC |
| Contact operation | Slow-break, make before break |
| Contacts material | Silver plated contacts |
| Positive opening | Without |
| Contacts insulation form | Za |
| Minimum actuation speed | 6 m/min |
| Maximum resistance across terminals | 8 mOhm conforming to IEC 60255-7 category 3 |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 60947-5-1 |
| 500 v | AC conforming to NF C 20-040 |
| 600 v | DC conforming to IEC 60947-5-1 |
| Short-circuit protection | 10 A cartridge fuse, type gG |
| 1000000 Cycles, | DC-13 110 V, 100 W, operating rate <60 cyc/mn, load factor: |
| Condition | New & original |
| Availability | On request |
Download official Telemecanique Sensors datasheet (PDF)
Independent distributor — not an authorised Telemecanique Sensors dealer. All parameters are taken from the official manufacturer documentation.
