Description

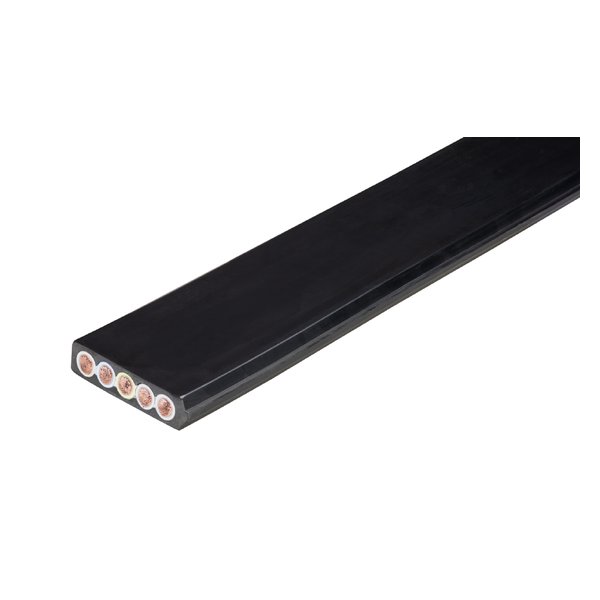

Wieland XPE 5G16 SCHWARZ — FLAT CABLE XPE. Manufacturer designation: Flat cable XPE 5G16. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Wieland |
|---|---|
| Model / Type | XPE 5G16 SCHWARZ |
| Article No. (MPN) | 00.729.0307.1 |
| Product Category | Cables & Wiring |
| Volume single part | 1350 ccm |
| Core insulation | copolymer, cross-linked |
| Core identification | color |
| Flame retardant | acc. EN 50265-2-1 |
| Low smoke (acc. EN50268-2) | no |
| Color outer sheath | black |
| Conductor category | class 6 = very flexible |
| Halogen free (according to EN 50267-2-3) | yes |
| Halogen free (acc. EN 50267-2-2) | yes |
| Yellow/green conductor | yes |
| Bending radius, static | 60 mm |
| Screen | no |
| Cable width approx. | 48 mm |
| Cable height approx. | 11.5 mm |
| Cable weight per km | 1270 kg |
| Min. installation temperature | 5 °C |
| Max. installation temperature | 50 °C |
| Min. ambient temperature fixed installation | -25 °C |
| Shock resistance | IK10 |
| Fire load | 0 kWh/m |
| Condition | New & original |
| Availability | On request |
Download official Wieland datasheet (PDF)
Independent distributor — not an authorised Wieland dealer. All parameters are taken from the official manufacturer documentation.
