Description

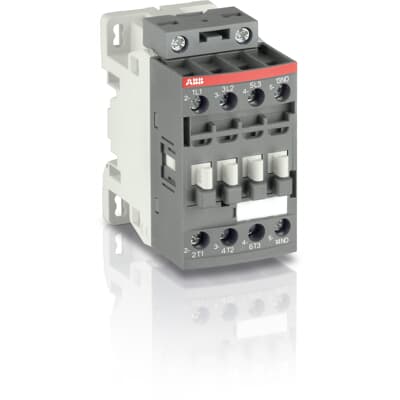

Three-pole contactor rated 690 V IEC or 600 V UL, with one built-in auxiliary contact and screw terminals. Switches motors up to 4 kW at 400 V AC-3 (5 hp at 480 V UL) and circuits up to 25 A AC-1 / 25 A UL general use. Uses a wide control range of 100-250 V 50/60 Hz and DC, with built-in surge protection, a block-type design, and add-on auxiliary contact blocks plus a range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Poles | 3P |
|---|---|
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Main Circuit 690 V; Auxiliary Circuit 690 V |
| Rated Frequency (f) | Main, Control and Auxiliary Circuits 50 / 60 Hz |
| Rated Control Circuit Voltage (Coil) | 100-250 V 50/60 Hz and DC |
| Conventional Free-air Thermal Current (Ith) | 35 A (open contactors, 40 °C, IEC 60947-4-1); 16 A (IEC 60947-5-1, 40 °C) |
| Rated Operational Current AC-1 (Ie) | (690 V) 25 A (40 °C); (690 V) 25 A (60 °C); (690 V) 22 A (70 °C) |
| Rated Operational Current AC-3 (Ie) | (220/230/240 V) 9 A; (380/400/415/440 V) 9 A; (500 V) 9.5 A; (690 V) 7 A |
| Rated Operational Current AC-15 (Ie) | (24/127 V) 6 A; (220/240 V) 4 A; (400/440 V) 3 A; (500 V) 2 A; (690 V) 2 A |
| Rated Motor Power | 4 kW at 400 V AC-3; 5 hp at 480 V UL |
| Protection | Built-in surge protection |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60947-4-1; CSA C22.2 No. 60947-4-1; UL/CSA 60335-2-40 LZGH2 A2L; IEC 60077-1; IEC 60077-2; EN 50155; TR CU 001/2011; IEC 61373 |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 77 mm |
| Product Net Height | 86 mm |
| Product Net Weight | 0.31 kg |
| EAN | 3471523123632 |
| Customs Tariff Number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
