Description

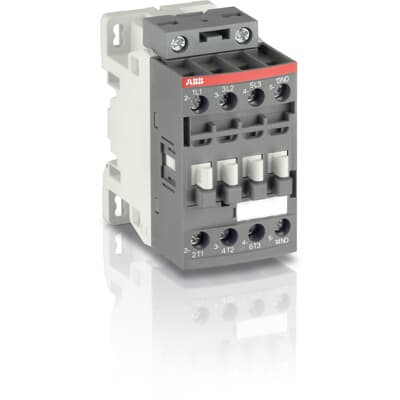

3-pole contactor for controlling motors up to 4 kW / 400 V AC (AC-3) with built-in surge protection and a block type design that can be extended with add-on auxiliary contact blocks. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of poles | 3P |
|---|---|
| Main contacts | 3 NO / 0 NC |
| Auxiliary contacts | 0 NO / 1 NC |
| AC-3 rated operational current | 9 A at 400 V, 60 °C |
| Motor power at 400 V | 4 kW |
| AC-1 rated operational current | 25 A at 690 V, 40 °C |
| Conventional free-air thermal current (Ith) | 35 A (open contactor, 40 °C); 16 A (IEC 60947-5-1) |
| Rated operational voltage | 690 V (main circuit) |
| Rated frequency | 50 / 60 Hz |
| Control supply voltage range | 250-500 V 50/60 Hz and DC |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40, UL 60947-4-1, CSA C22.2, IEC 60077, EN 50155, IEC 61373, TR CU 001/2011 |
| Dimensions | Width 45 mm; depth 77 mm; height 86 mm |
| Weight | 0.31 kg |
| EAN | 3471523121942 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
