Description

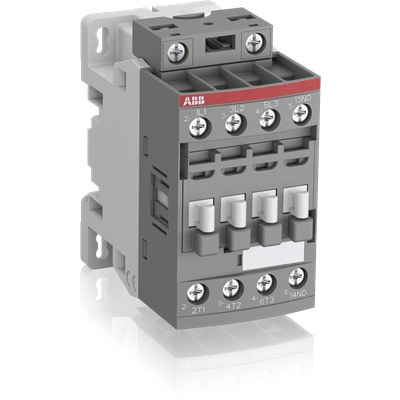

AF12-30-01-11 24-60V50/60HZ 20-60VDC Contactor. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 12 A @ 230/240 V, 12 A @ 380/400 V, 12 A @ 415 V, 12 A @ 440 V, 12.5 A @ 500 V, 9 A @ 690 V (all at 60 °C) |
|---|---|
| Motor power at 400 V (AC-3) | 5.5 kW (UL 480 V: 7-1/2 hp) |
| AC-1 rated operational current | 28 A @ 690 V (40 °C and 60 °C); 24 A @ 690 V (70 °C) |
| Rated operational voltage | 690 V (main and auxiliary circuits); IEC 690 V / UL 600 V |
| Poles / contact configuration | 3 poles; main 3 NO + 0 NC; auxiliary 0 NO + 1 NC |
| Control supply voltage range | 24–60 V, 50/60 Hz and 20–60 V DC (wide-range coil) |
| Conventional free-air thermal current | 35 A (open contactor, IEC 60947-4-1, 40 °C); 16 A (IEC 60947-5-1, 40 °C) |
| Product type | Contactor (block-type AF technology, screw terminals) |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60335-2-40 (LZGH2, A2L); UL 60947-4-1; CSA C22.2 No. 60335-2-40 (LZGH2, A2L); CSA C22.2 No. 60947-4-1 |
| Dimensions (net, W × D × H) | 45 mm × 77 mm × 86 mm |
| Net weight | 0.27 kg |
| EAN | 3471523110410 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
