Description

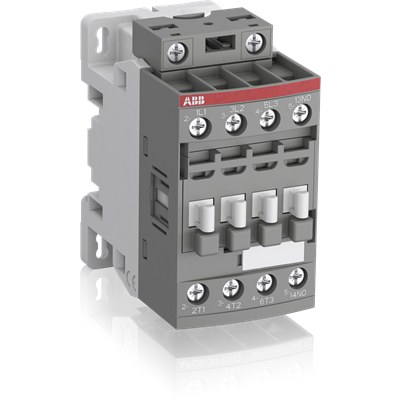

A 3-pole contactor for 690 V IEC or 600 V UL, with 1 built-in auxiliary contact and screw terminals, controlling motors up to 5.5 kW / 400 V AC under AC-3, or 7½ hp / 480 V under UL, and switching power circuits up to 28 A under AC-1 or 28 A UL general use. AF technology with built-in surge protection, block-type design, extensible with add-on auxiliary contact blocks. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | (415 V) 60 °C: 12 A; (440 V) 60 °C: 12 A; (500 V) 60 °C: 12.5 A; (690 V) 60 °C: 9 A; (380 / 400 V) 60 °C: 12 A; (220 / 230 / 240 V) 60 °C: 12 A |
|---|---|
| Motor power at 400 V | 5.5 kW / 400 V AC (AC-3) |
| AC-1 rated operational current | (690 V) 40 °C: 28 A; (690 V) 60 °C: 28 A; (690 V) 70 °C: 24 A |
| Rated operational voltage main circuit | 690 V |
| Rated operational voltage auxiliary circuit | 690 V |
| Poles and contact configuration | 3P; main: 3 NO / 0 NC; auxiliary: 1 NO / 0 NC; screw terminals |
| Control supply voltage range | 48-130 V 50/60 Hz and DC |
| Conventional free-air thermal current Ith | acc. to IEC 60947-4-1, open contactors, 40 °C: 35 A; acc. to IEC 60947-5-1, 40 °C: 16 A |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
| Width | 45 mm |
| Depth | 77 mm |
| Height | 86 mm |
| Weight | 0.27 kg |
| EAN | 3471523110328 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
