Description

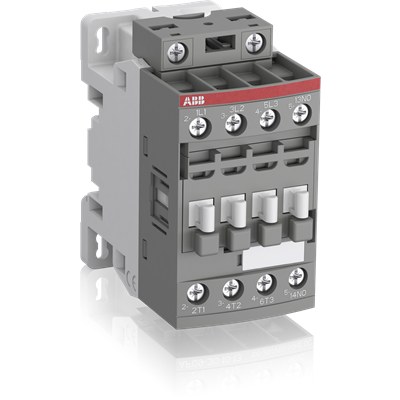

Three-pole 690 V IEC or 600 V UL contactor with one built-in auxiliary contact and screw terminals; controls motors up to 5.5 kW at 400 V AC for AC-3 or 7-1/2 hp at 480 V UL; switches power circuits up to 28 A AC-1 or 28 A UL general use; wide 250-500 V 50/60 Hz/DC control range; built-in surge protection; block-type expandable design. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| AC-3 rated operational current | 380/400 V 60 °C 12 A; 415 V 60 °C 12 A; 440 V 60 °C 12 A; 500 V 60 °C 12.5 A; 690 V 60 °C 9 A; 220/230/240 V 60 °C 12 A |
|---|---|
| Motor power at 400 V | 5.5 kW, AC-3 |
| AC-1 rated operational current | 690 V 40 °C 28 A; 690 V 60 °C 28 A; 690 V 70 °C 24 A |
| Rated operational voltage | 690 V IEC; 600 V UL |
| Poles and contact configuration | 3P; main contacts NO 3, NC 0; auxiliary contacts NO 1, NC 0 |
| Control supply voltage range | 250-500 V 50/60 Hz and DC |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL 60335-2-40 LZGH2 A2L; UL 60947-4-1; CSA C22.2 No. 60335-2-40 LZGH2 A2L; CSA C22.2 No. 60947-4-1 |
| Product type | Contactor, AF12 |
| Dimensions | Width 45 mm; depth/length 77 mm; height 86 mm |
| Weight | 0.31 kg |
| EAN | 3471523110342 |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 86 x 77 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
